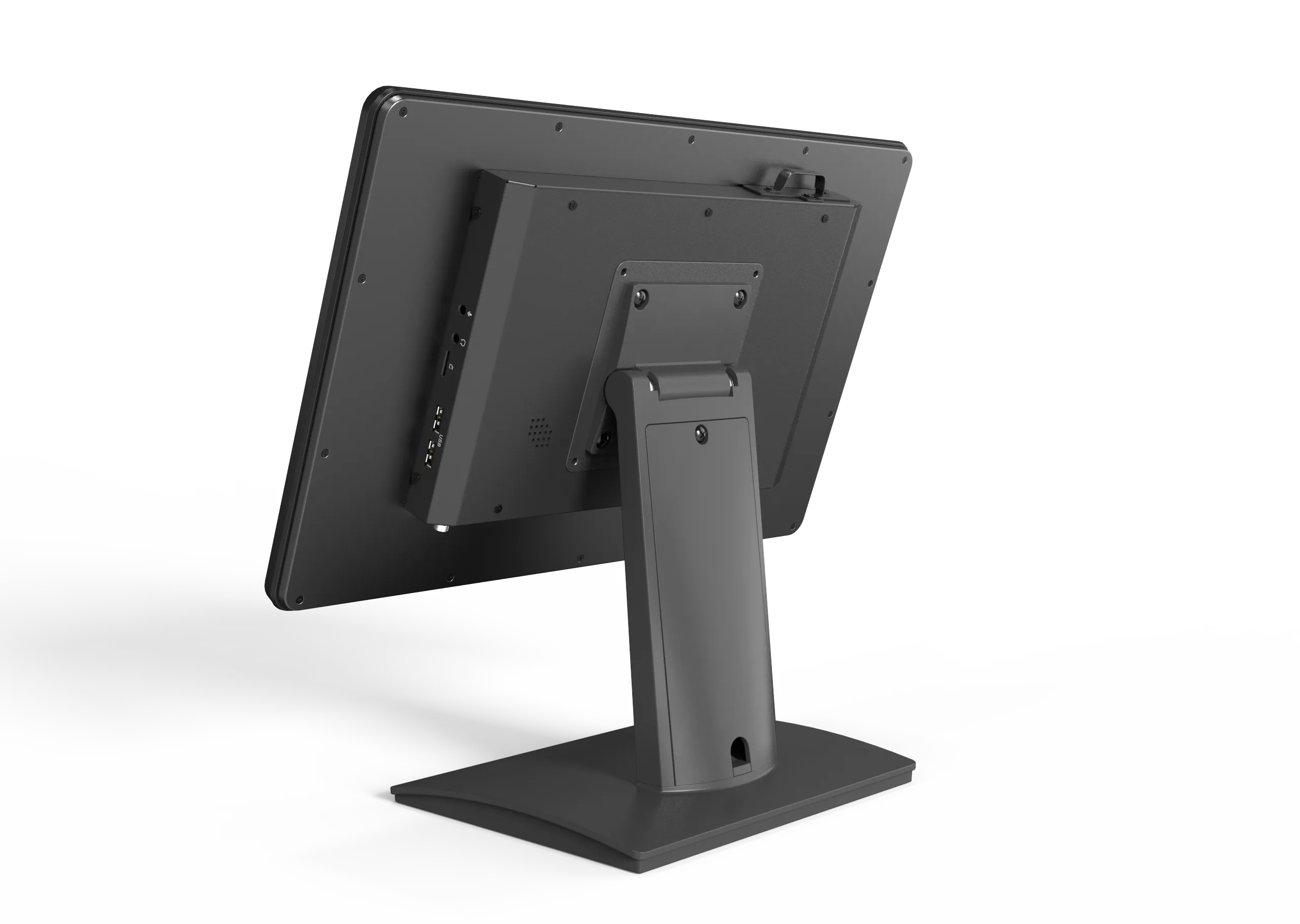

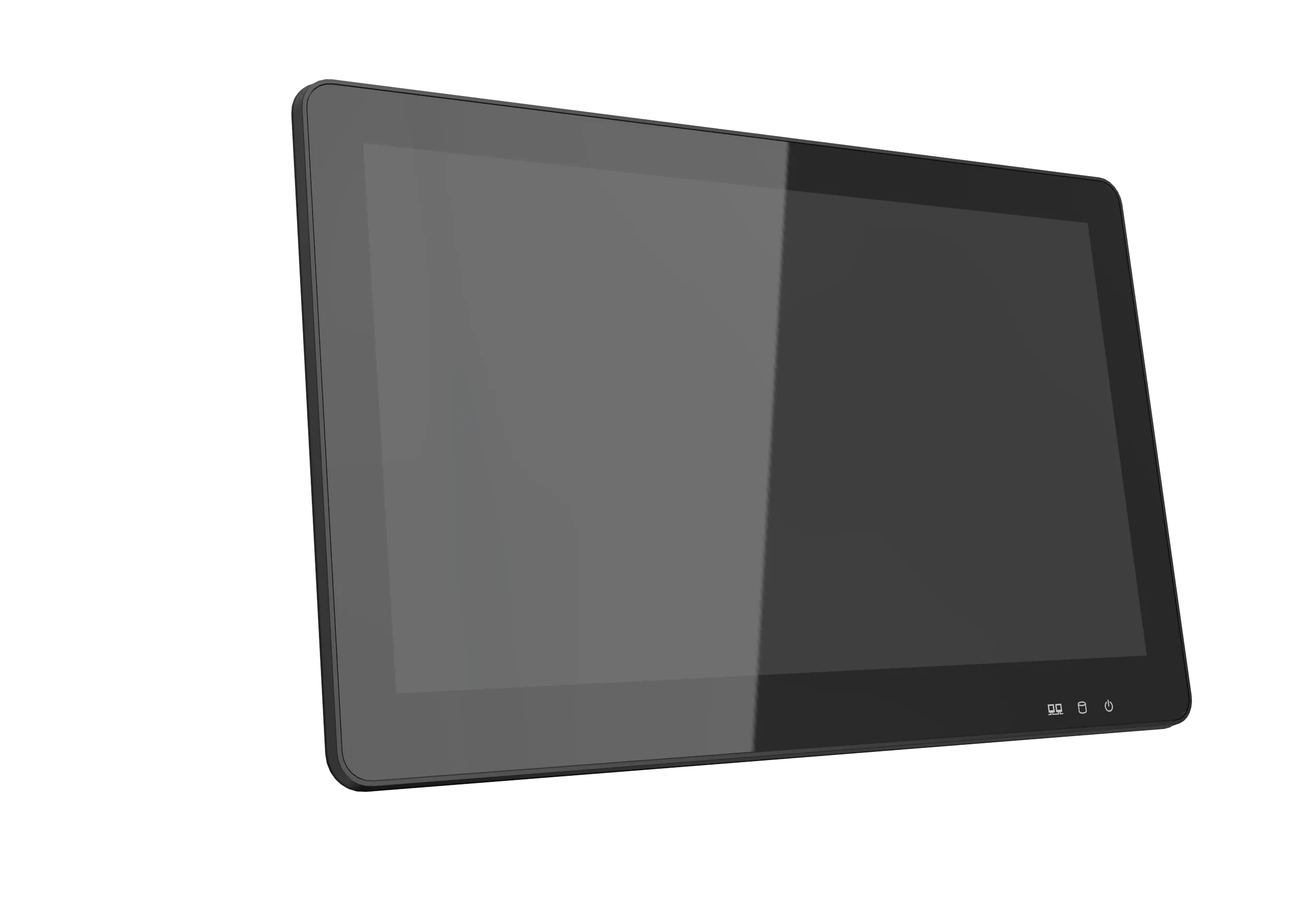

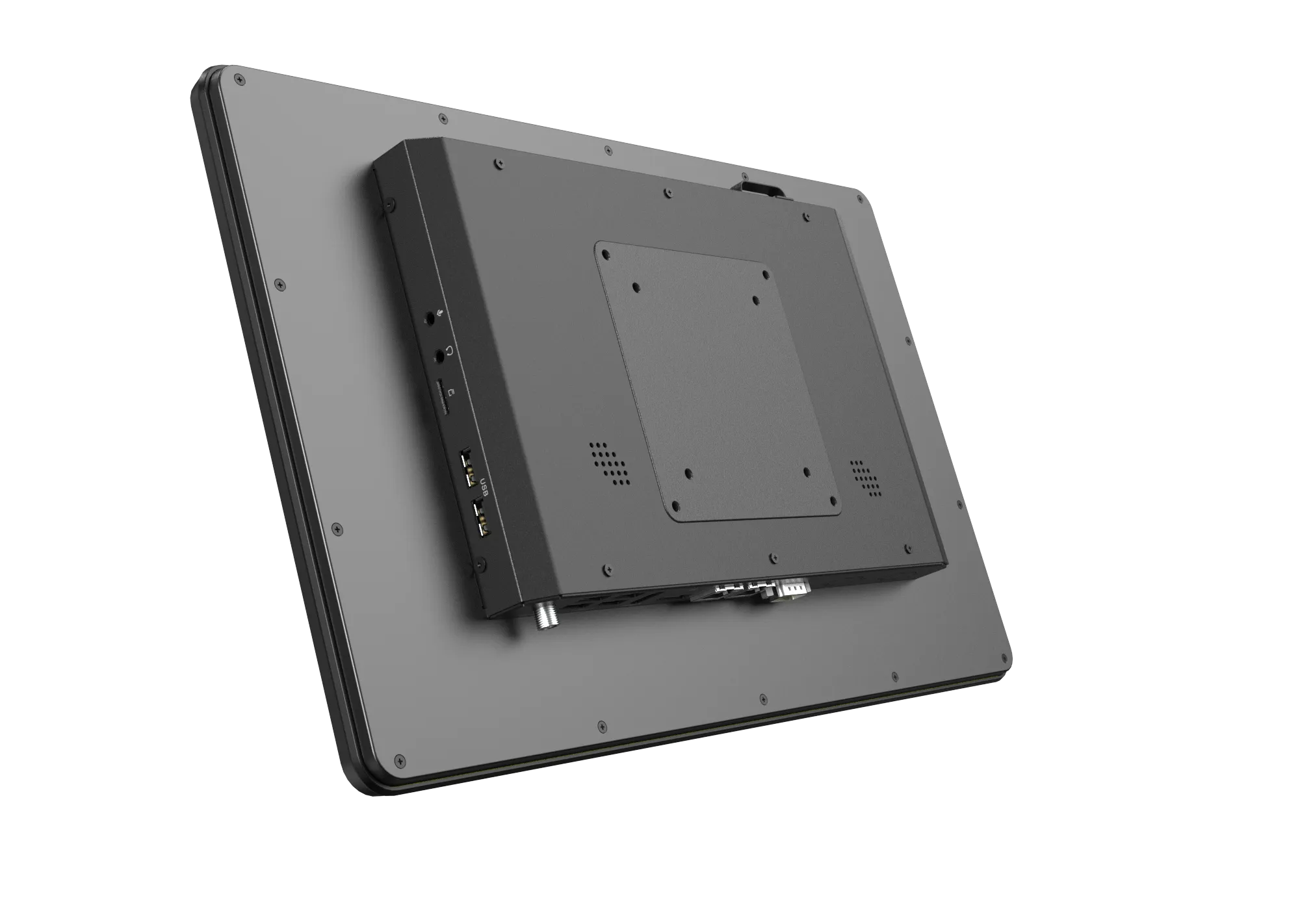

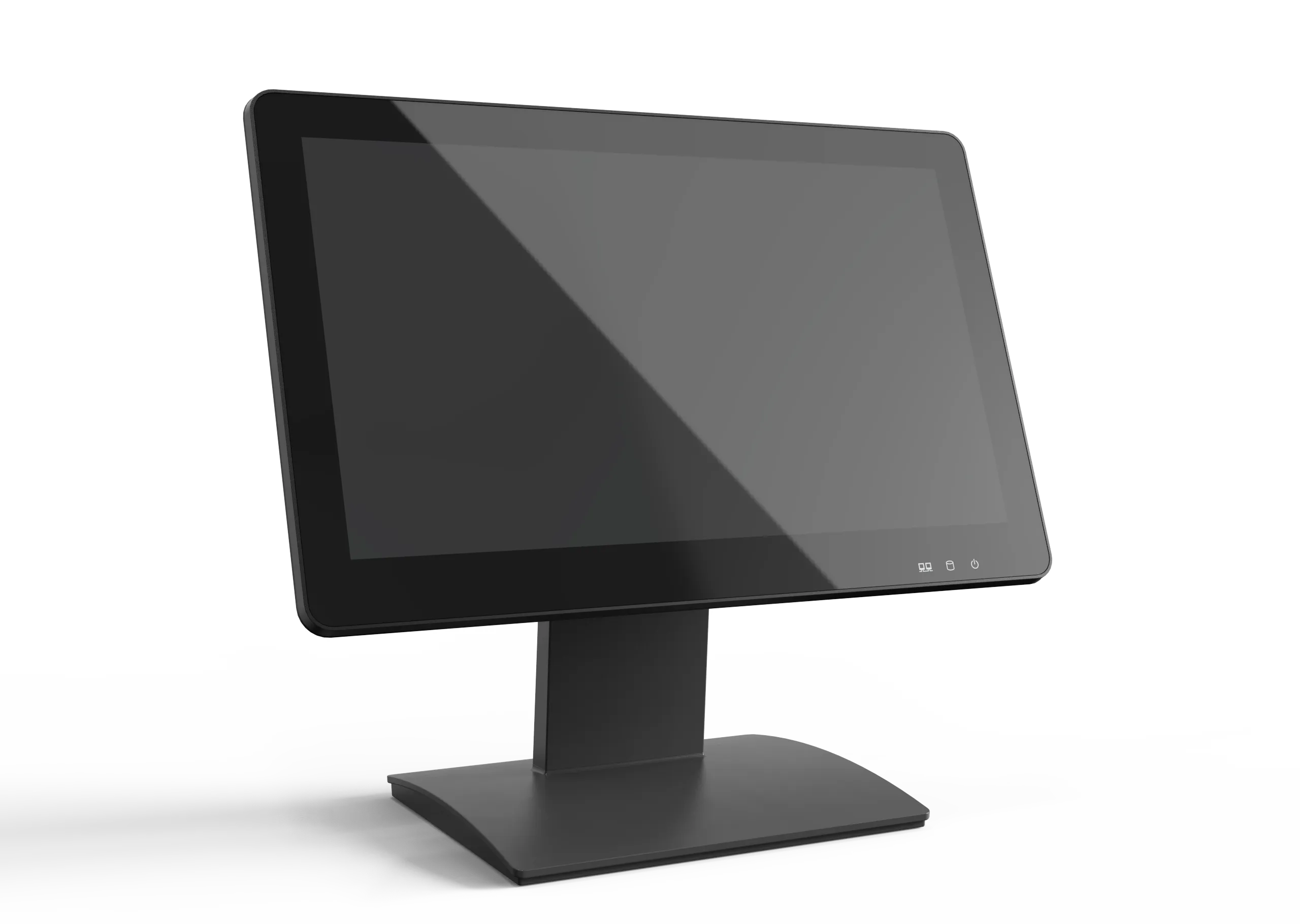

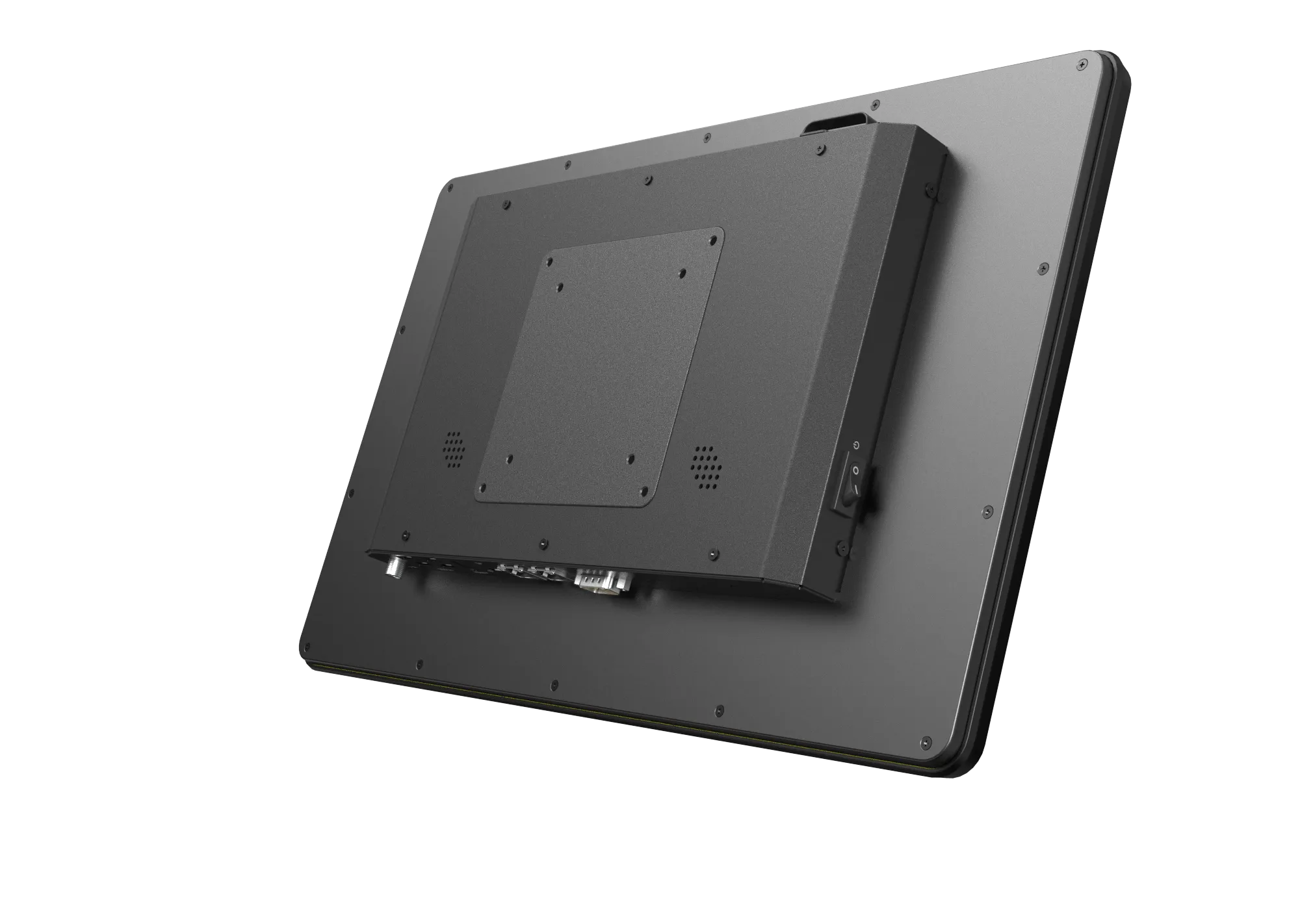

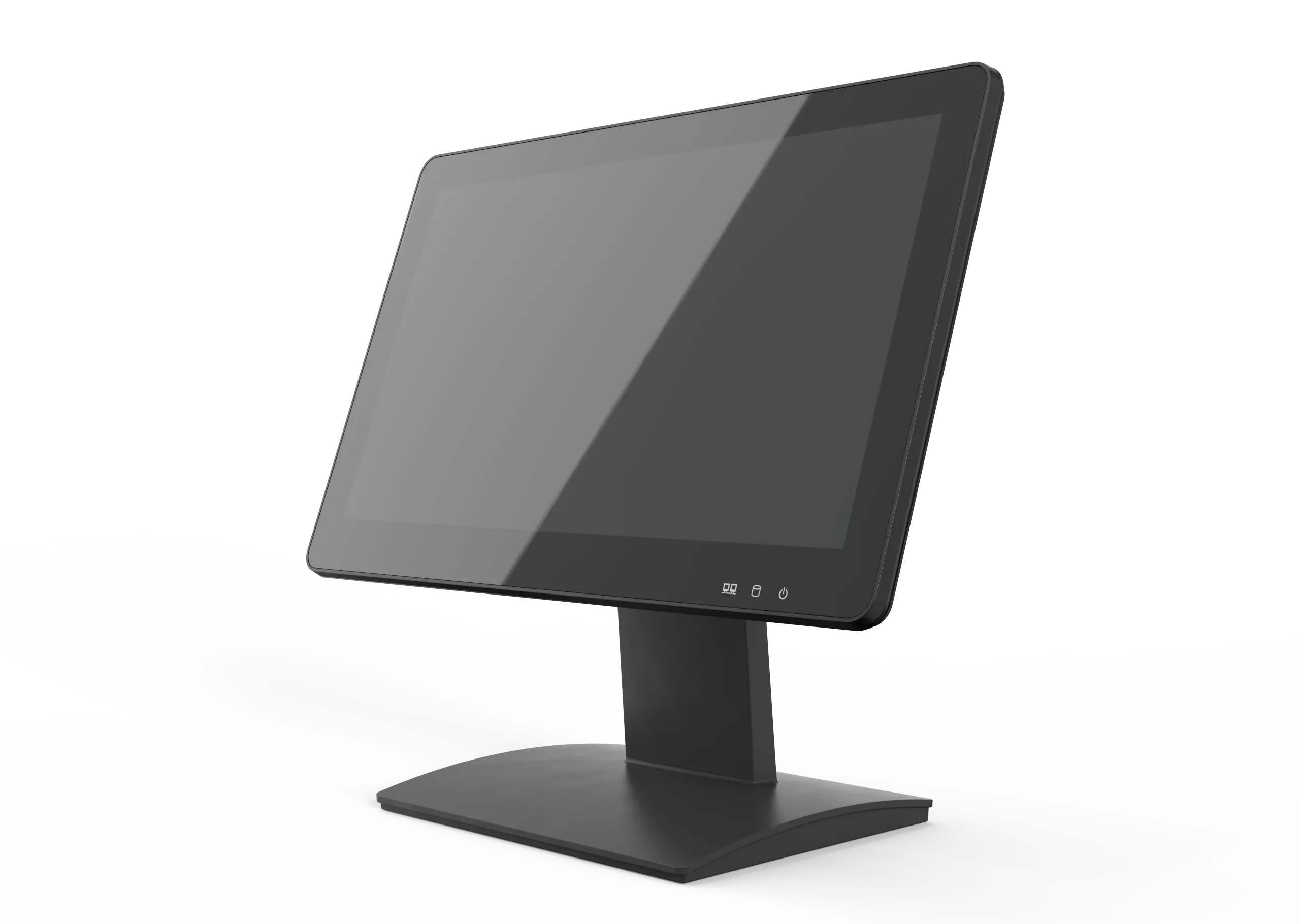

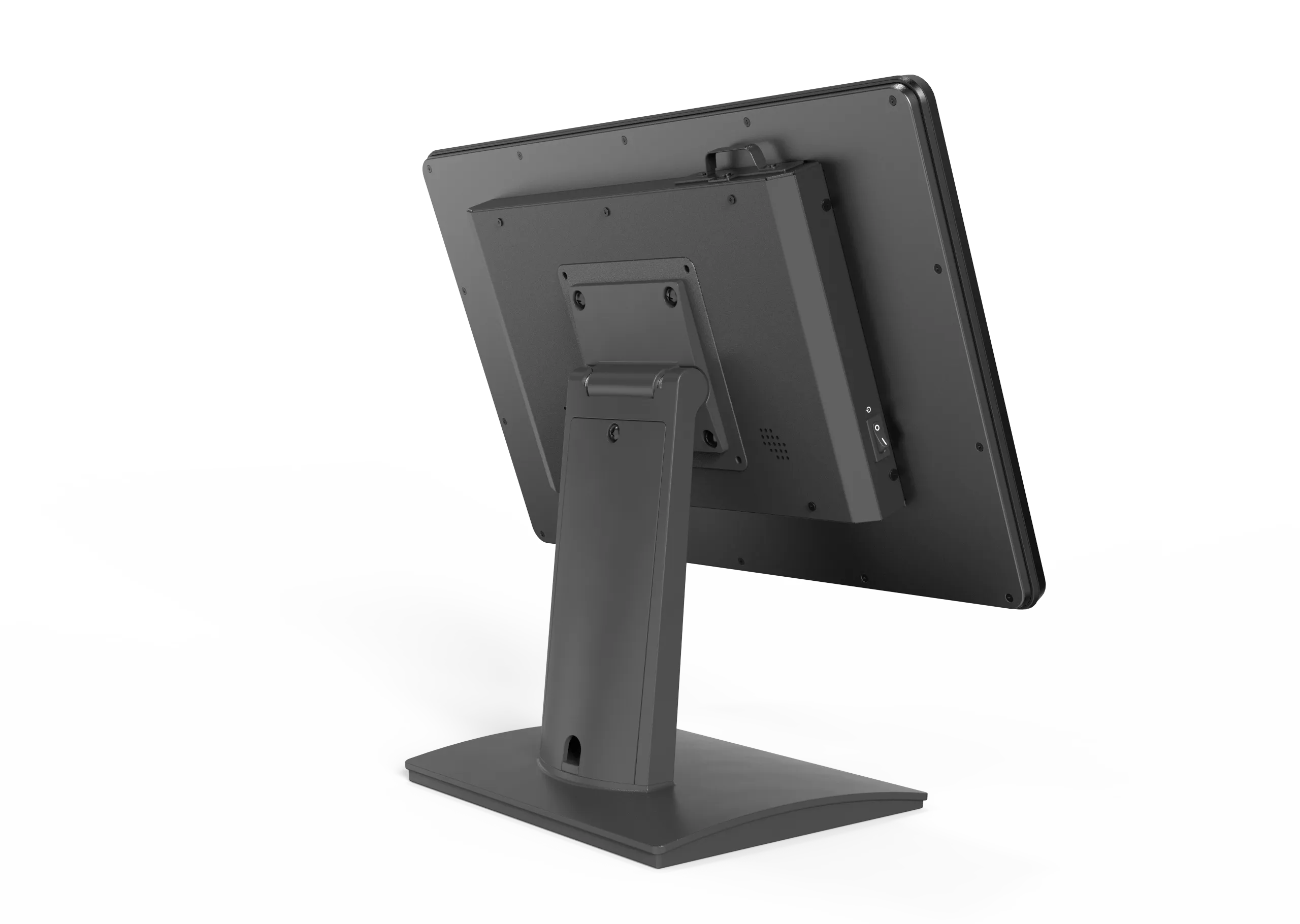

Introducing the Tactile PPCi3, a robust panel PC meticulously crafted for industrial applications. Equipped with a 15.6-inch screen and a crisp resolution of 1920 x 1080 pixels, this model delivers clear and vibrant visuals essential for precise industrial operations.
At its core lies the Intel Core I3-N305 processor, efficiently balancing performance with energy conservation, making it an ideal choice for demanding industrial settings. The fanless and ultra-slim design ensures silent operation, enhancing the work environment in noise-sensitive industrial areas.
The fully flat capacitive touch panel facilitates seamless user interaction, crucial for timely and accurate responses in fast-paced industrial tasks. With a rugged IP65 rated front panel and an IP41 rated rear, the Tactile PPCi3 is built to withstand the harsh realities of industrial environments.
This variant is outfitted with 8GB RAM and a 128GB SSD, providing a swift and smooth operational experience. Integrated WiFi and Bluetooth connectivity ensure effortless communication with other devices and networks, enhancing operational flexibility. It comes pre-loaded with your choice of Windows 10 or Windows 11 IoT Enterprise, offering a secure and reliable platform tailored to meet the demands of industrial computing environments.
Embrace the Tactile PPCi3 panel PC as your dependable companion in driving industrial efficiency and accuracy.
Tactile PPCi3 Industrial Panel PC Specifications
Display:
- Size: 15.6”
- Resolution: 1920 x 1080
- Brightness (nits): 500
- Viewing Angle: 89/89/89/89
- Touch Panel: Projective Capacitive
CPU:
- Model: Intel Core I3-N305
- Speed: 1.8GHz
- Cores: 8
- Power: 15W
Memory & Storage:
- Memory: 1 x DDR5 So-DIMM Slot (262-Pin) up to 16GB
- Storage: Room for 1 x 2.5” HDD and 1xM.2 2242 MLC SATA SSD (optional)
Connectivity:
- LAN: 10/100/1000/2500Mbps Gigabit LAN, Intel I225V Co-Lay Intel I225LM PCle 2.5GbE LAN
- WLAN: Intel AX-210 WiFi 6 / BT5.2
Protection:
- Front Panel: IP65
- Back Cover: IP41
Environmental:
- Operating Temperature: 0-40°C (32-113°F)
- Relative Humidity: 20-90% @40°C, without condensing

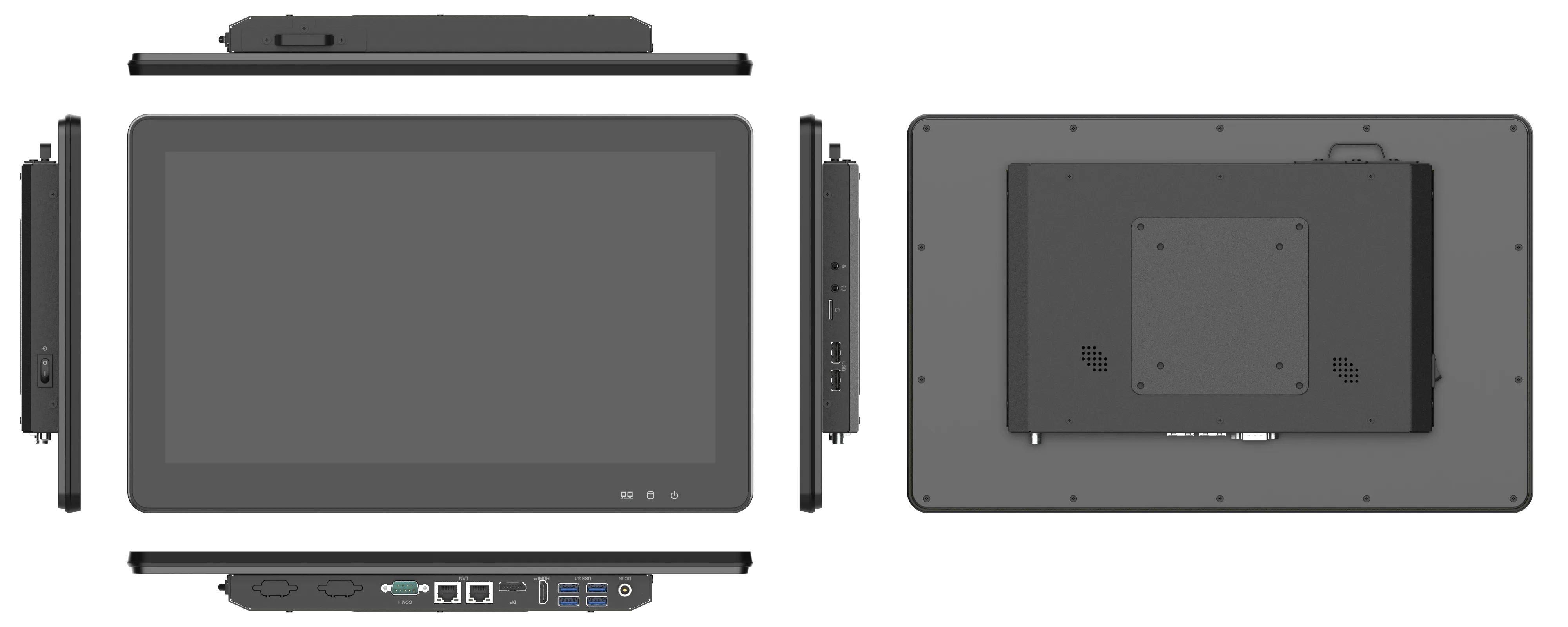

I/O Ports:
- 1 x DP-Port Connector, 1 x HDMI-Port Connector
- LAN: 2 x RJ-45 2.5GbE LAN Ports Connectors
- USB: 2 x Dual Stacked Type-A USB 3.1 Connectors, 2 x USB 2.0 Ports
- Audio: 1 x Line-out and 1 x MIC in jack
- COM: 3 x COM (1 x Edge I/O ,2 x internal) COM1,COM2 support RS-232/422/485 (0v/5v/12v)
- Other: 1 x microSD connector which support SDXC 3.0
