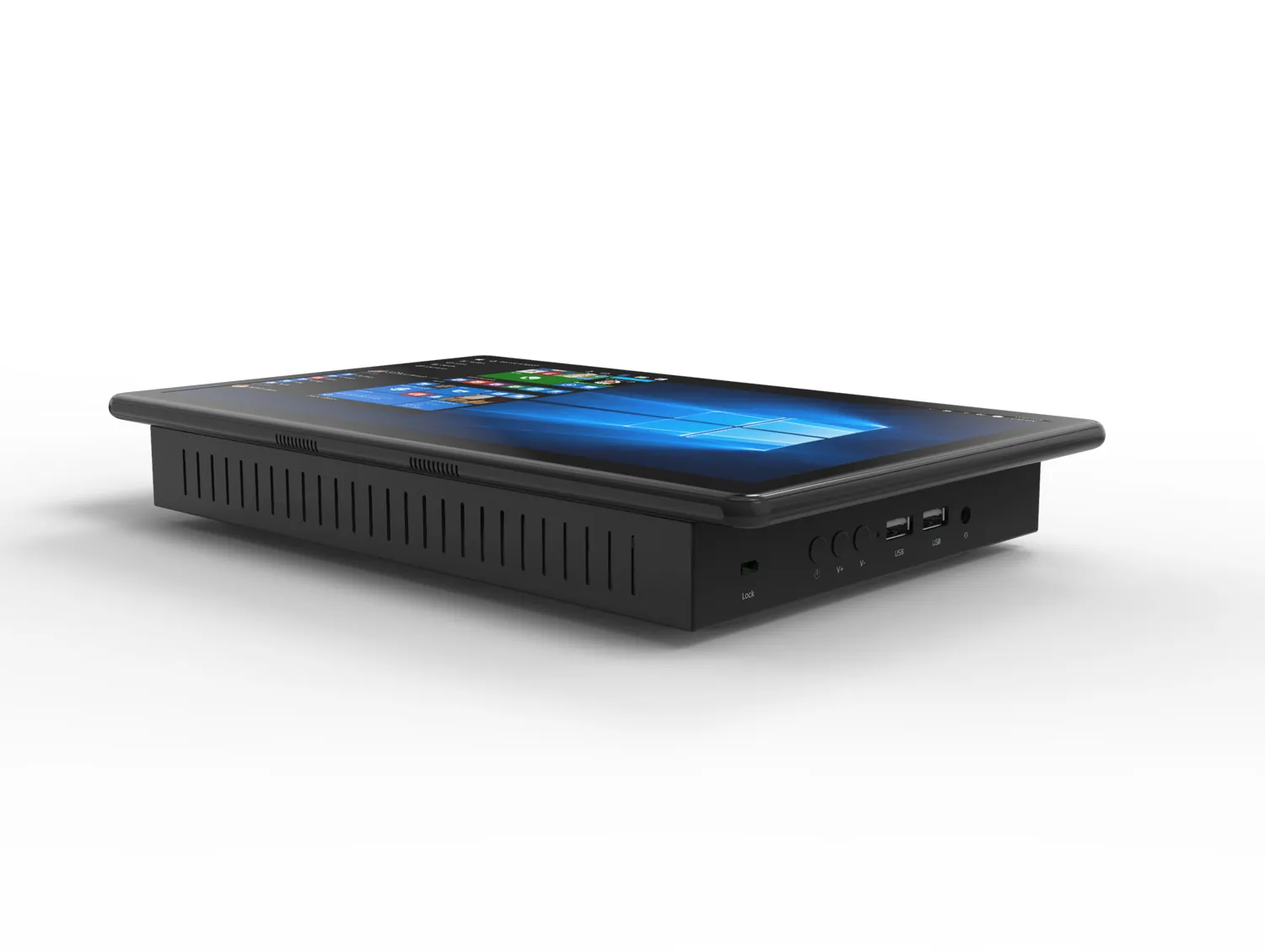

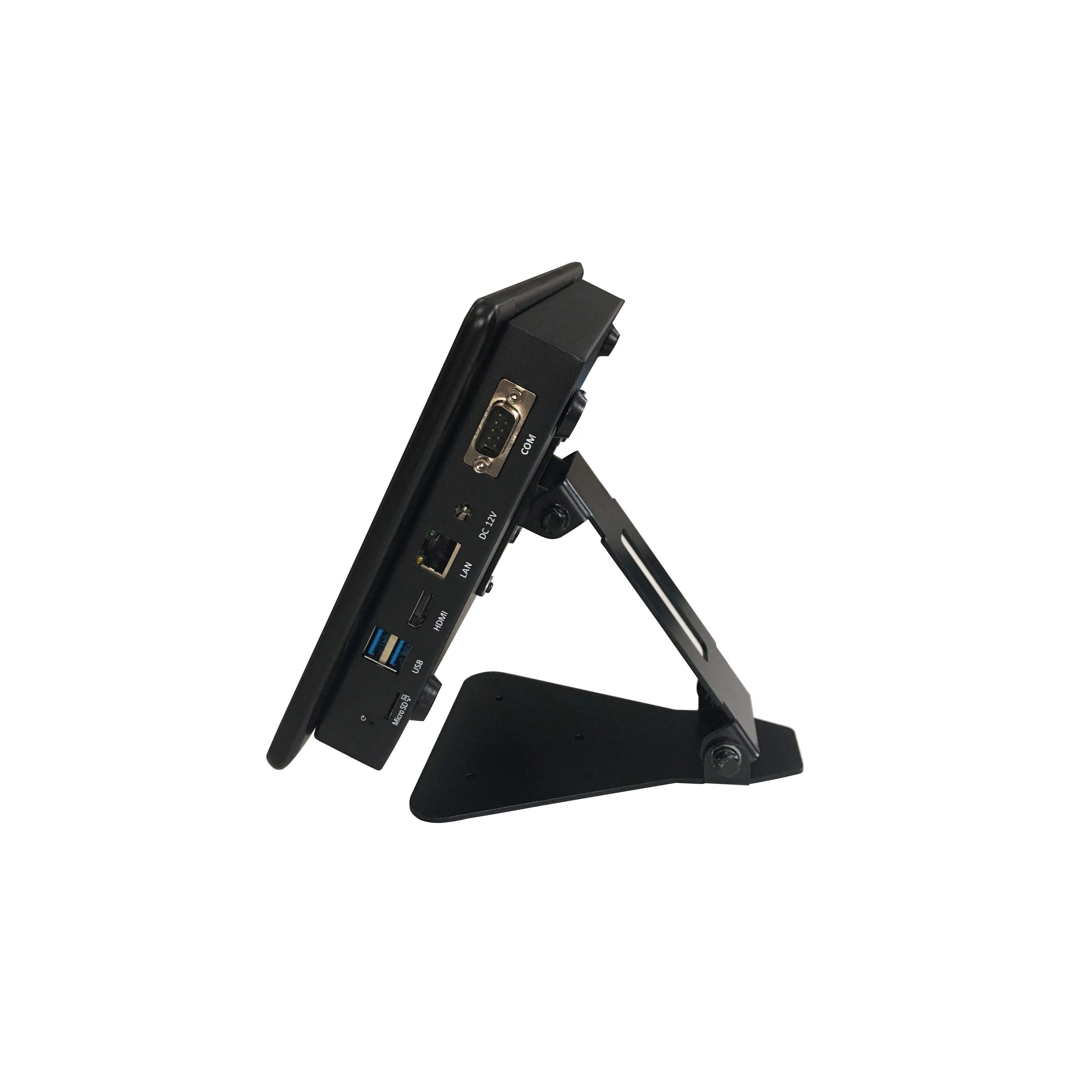

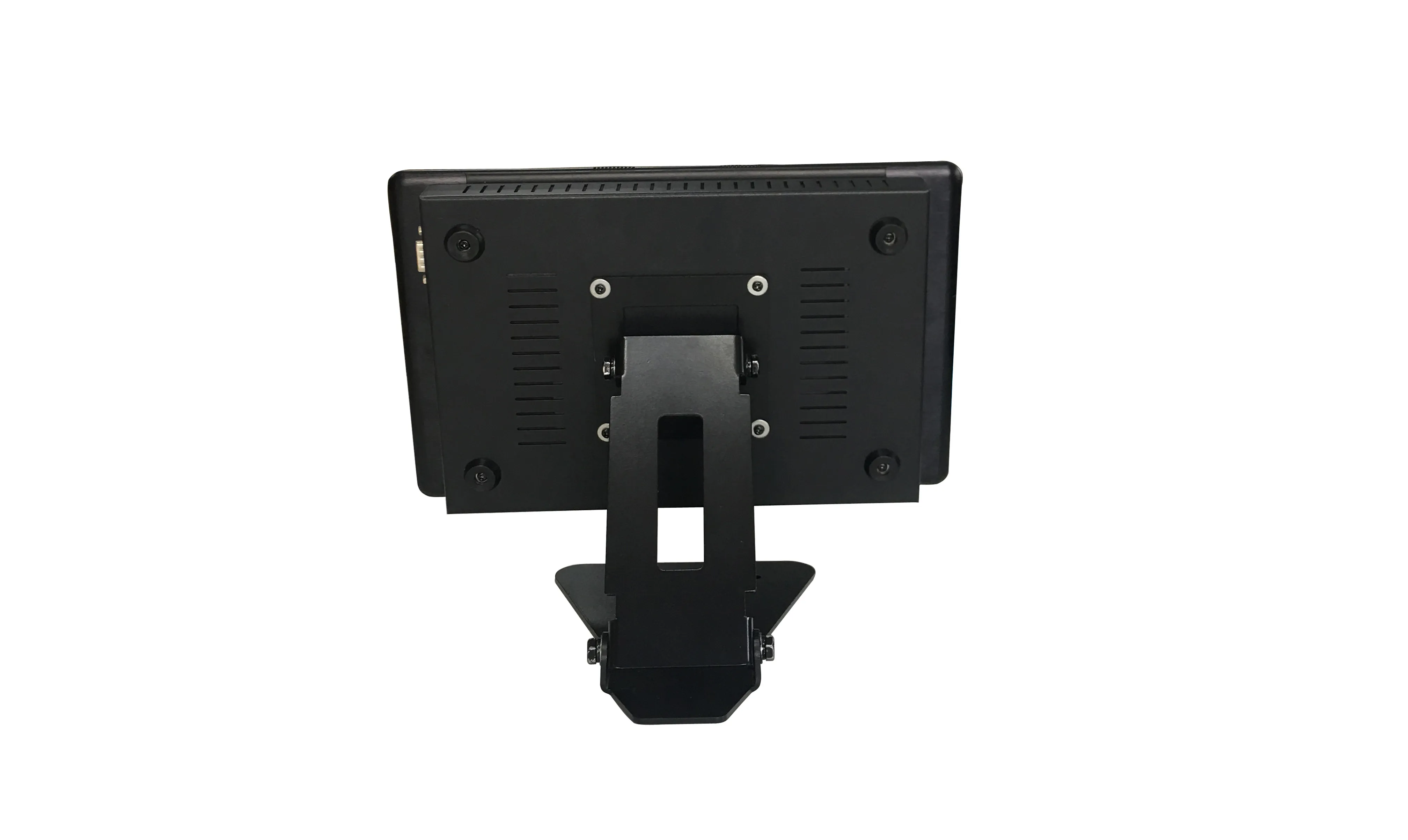

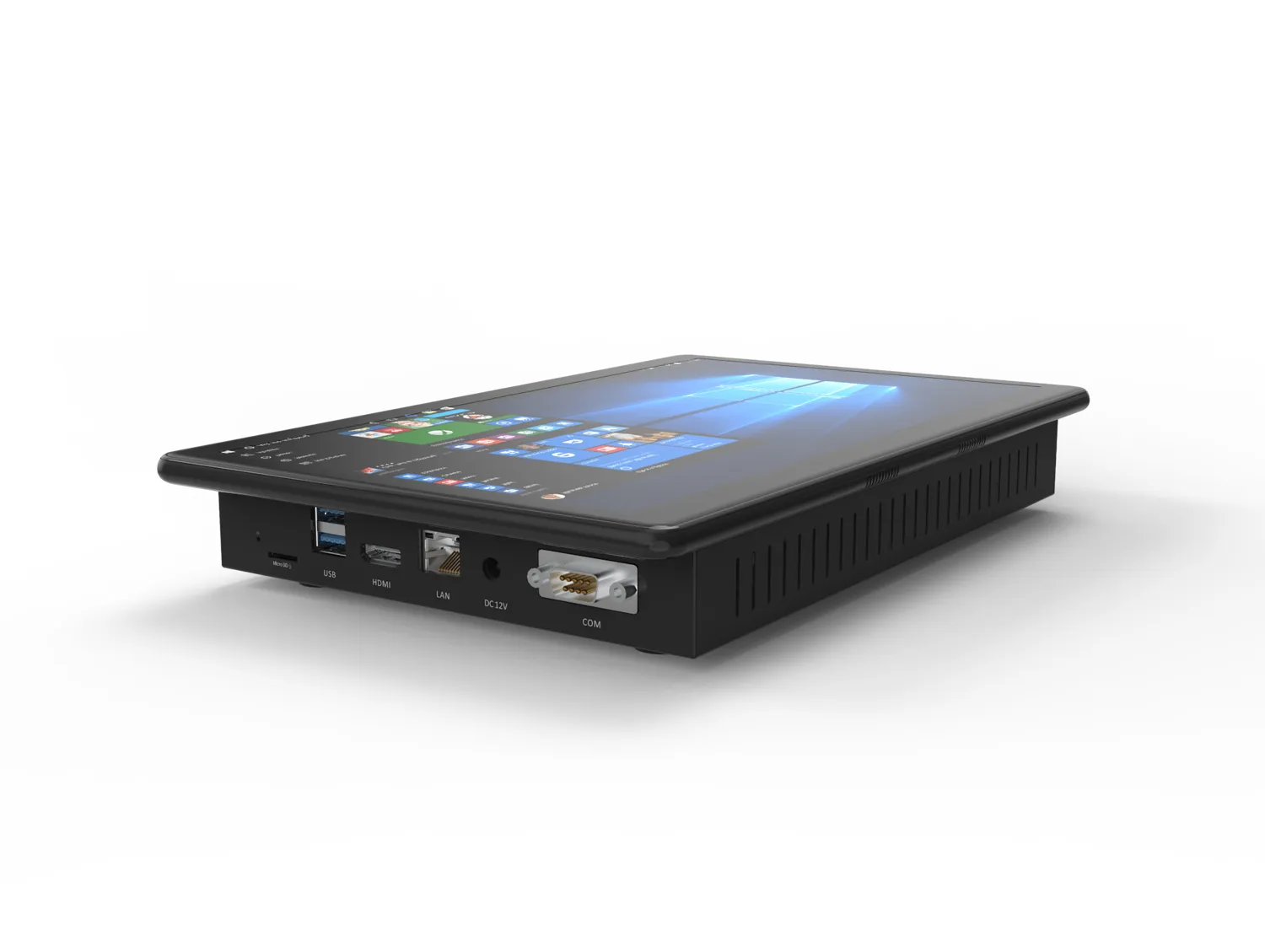

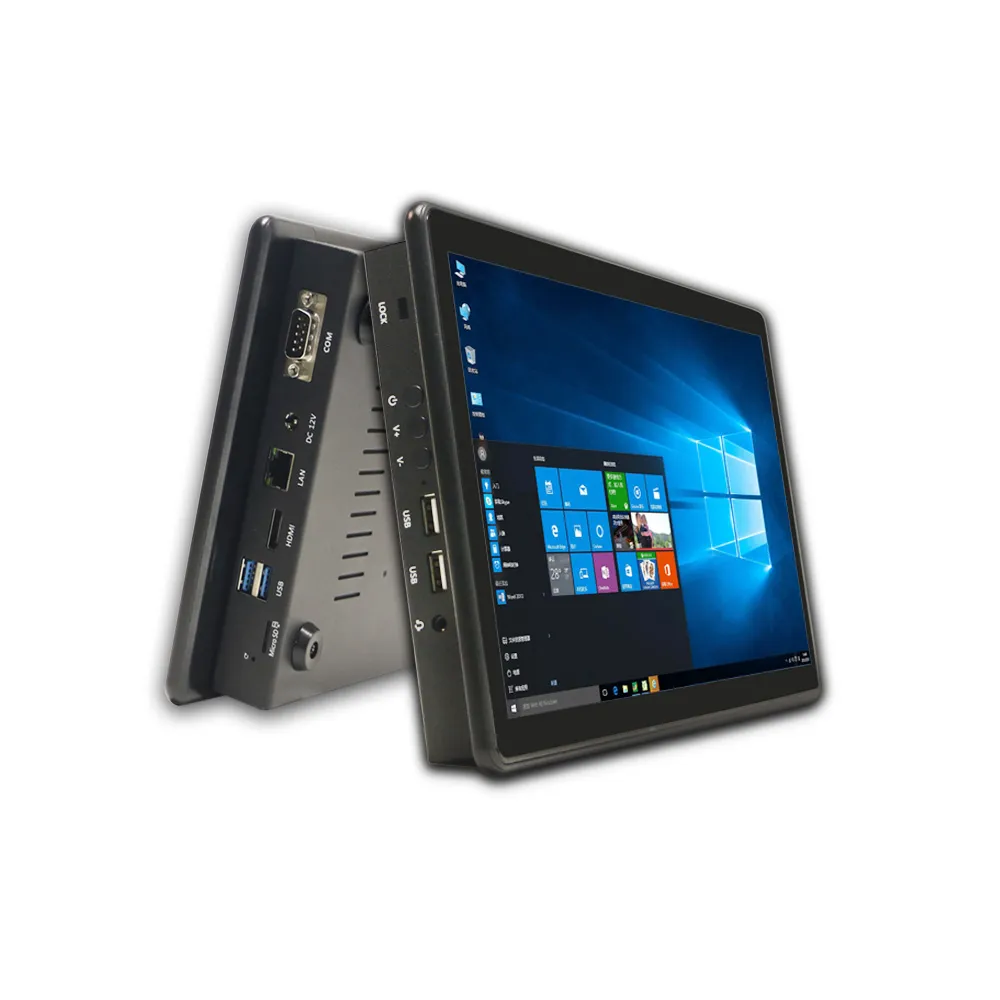

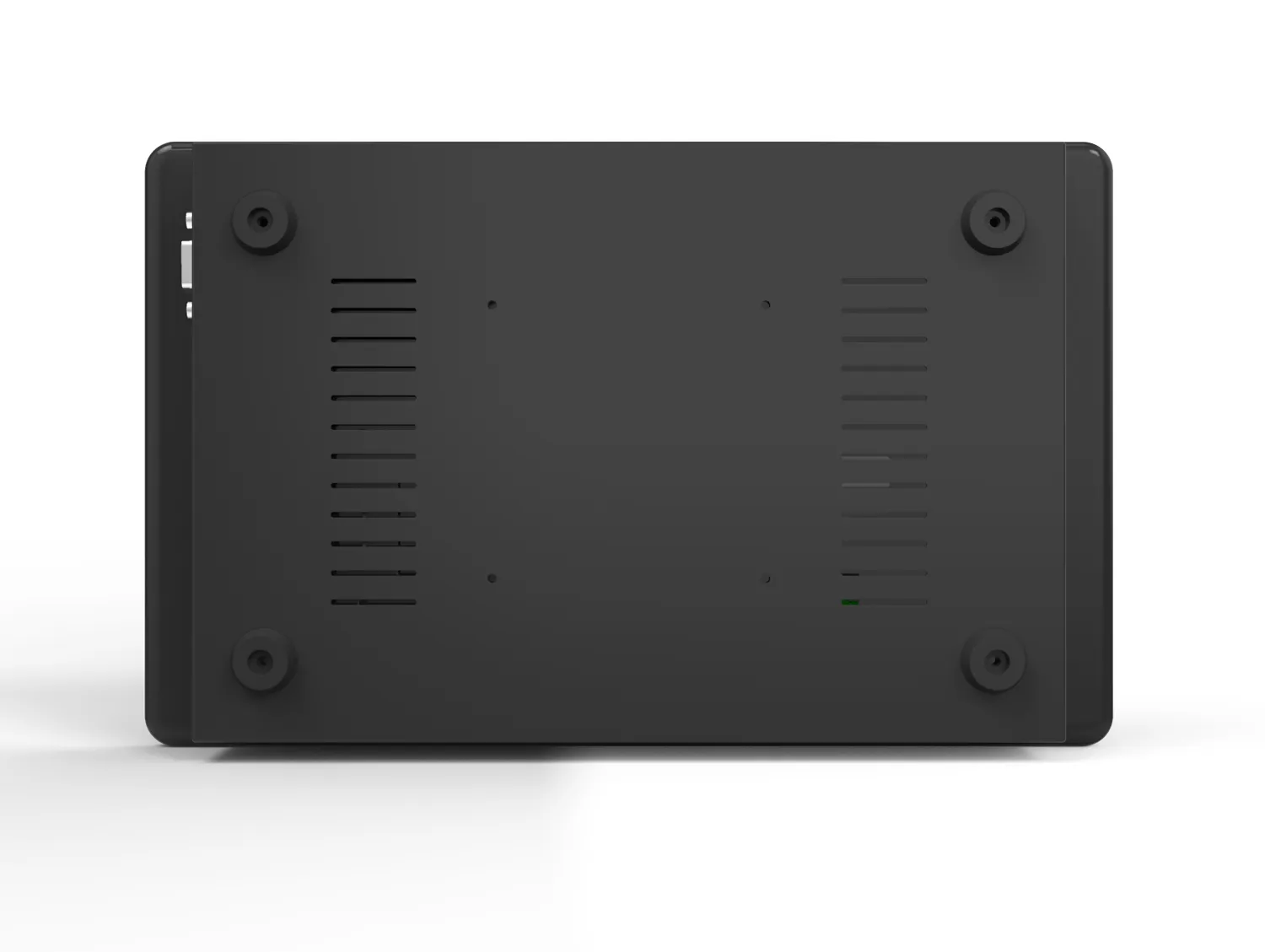

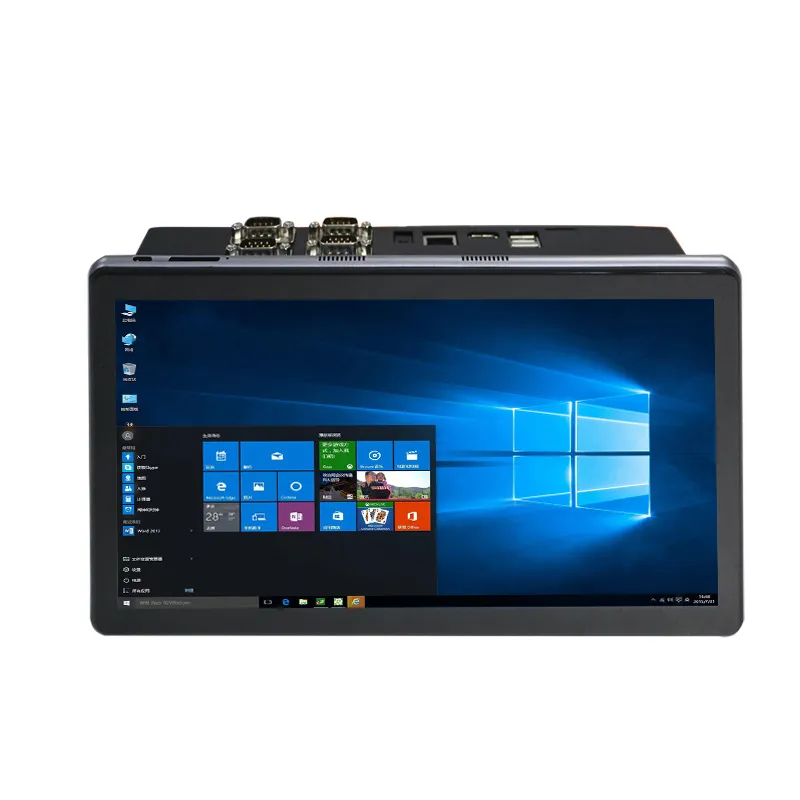

Tactile PPC12N

The Tactile PPC12N, also known as a touch POS or POS terminal, is a specialized hardware unit combining a computer and a touchscreen in a single device. Designed for use in industrial, retail, and restaurant environments, the PPC12N is powered by an Intel Apollo Lake N3450 Quad-Core CPU and comes with 4GB DDR3 RAM.
Stock: 0

Industry-Adapted Hardware for Your Needs

The Tactile PPC12N POS terminal is engineered to withstand the rigors of industrial, retail, and restaurant settings. At its core, it runs on a robust Intel Apollo Lake N3450 Quad-Core processor, ensuring a smooth and efficient operation. This is further enhanced by 4GB DDR3 RAM, offering the necessary speed and efficiency for your everyday tasks.

Superior Visual Experience

The PPC12N boasts an 11.6-inch IPS display with 1920*1080 resolution, delivering clear, vivid visuals for optimum user experience. The G+G multi-touch functionality ensures intuitive, easy navigation across various applications. With a 250 NIT brightness, the screen remains clearly visible even in diverse lighting conditions.

Network and Connectivity

For network and connectivity, the PPC12N comes with a 100/1000Mbps Gigabit Lan and an Intel AC3165 WIFI module supporting dual-band 802.11ac/b/g/n Wi-Fi. It also features Bluetooth 4.2 for peripheral connections. An optional 4G module is also available for enhanced mobile connectivity.

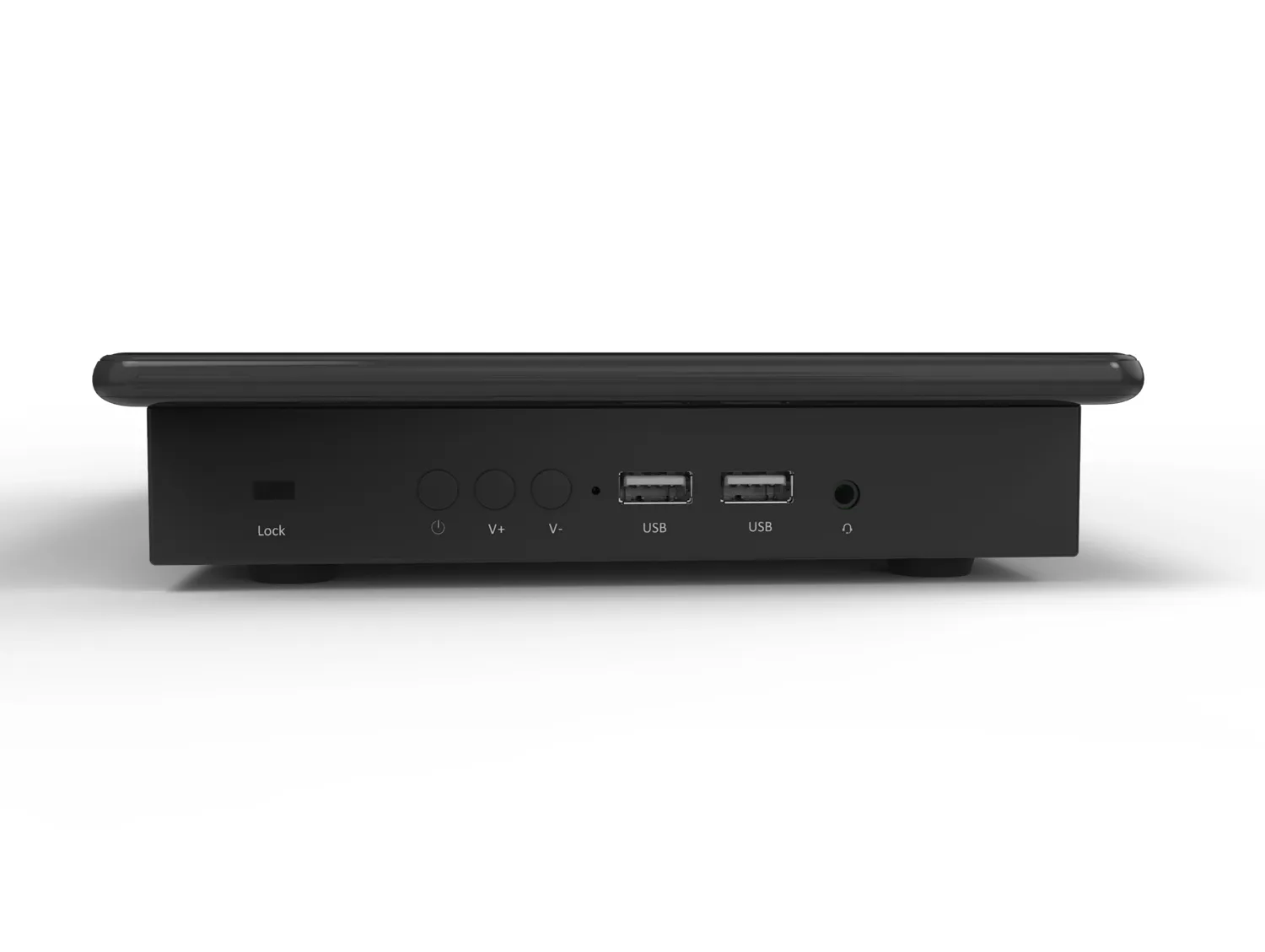

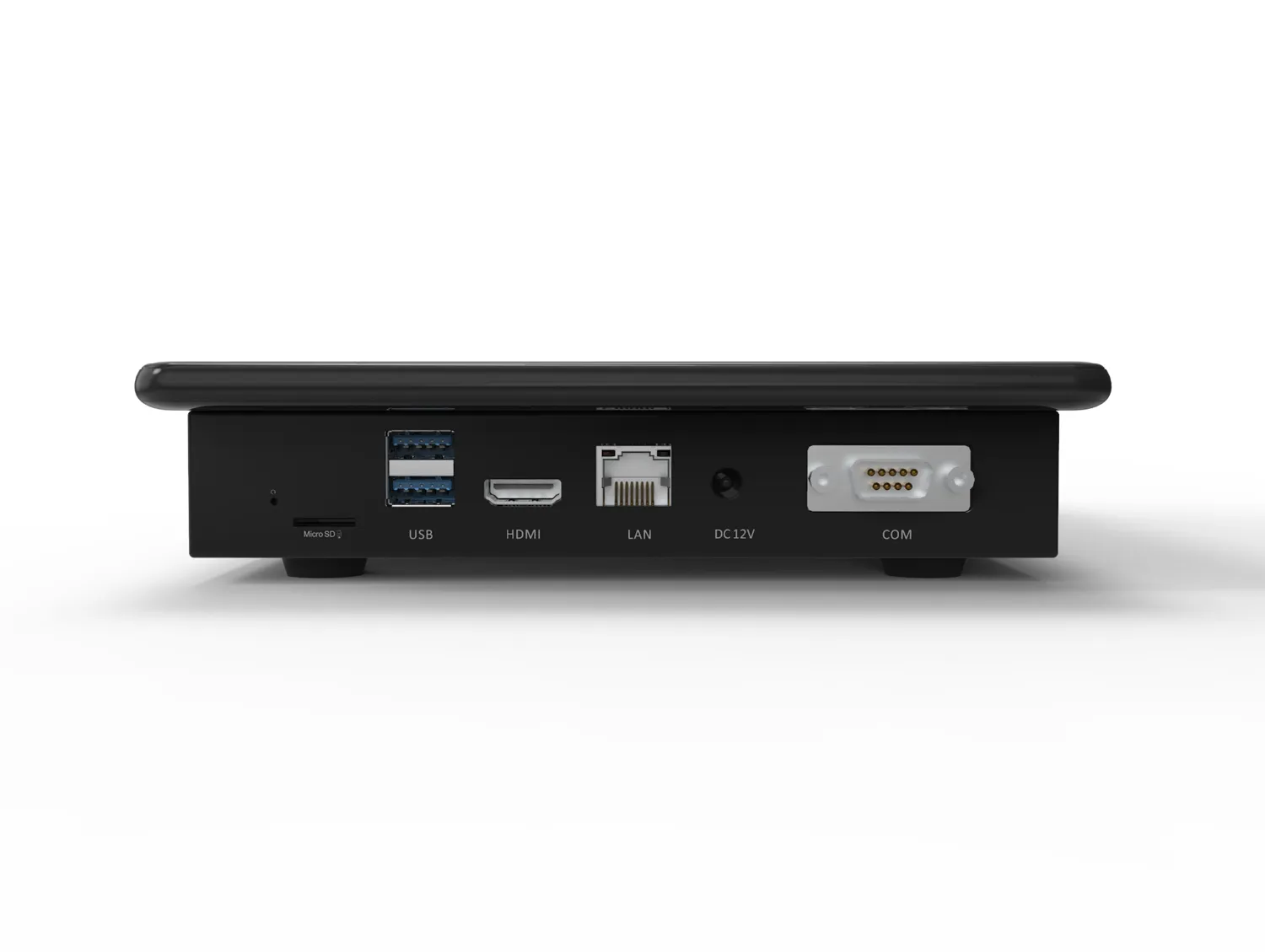

Comprehensive Ports and Expansion

The PPC12N comes equipped with two USB 2.0 and two USB 3.0 ports, a TF card reader supporting up to 128GB, and a 3.5mm headphone jack. For commercial applications, it features four COM ports, including three RS232 and one RS485.

Built for the Environment

The PPC12N is built to withstand a wide range of environmental conditions. It can operate between -10oC to 50oC and can be stored in temperatures from -20oC to 70oC. The device maintains functionality in 35% to 80% relative humidity during operation and can withstand 20% to 93% relative humidity in storage.

Invest in the Tactile PPC12N today for a reliable, high-performance touch POS solution designed to meet your business needs.


Intel Apollo Lake N3450 Quad-Core




11.6inch 1920*1080 (IPS+250ANSI)


Windows® 10


G+G Multi-Touch


250 NIT




100/1000Mbps Gigabit Lan

WIFI Module: Intel AC3165 - WIFI 802.11ac/b/g/n 5G&2.4G Dual-band

BT Module: Intel AC3165 - Bluetooth4.2

4G module: Optional




2 x USB 2.0

2 x USB 3.0

SD / TF Card   reader

1 x TF Card reader - support 128GB max


Audio jack - 3.5mm headphone

Built-in speaker  8Ω/1W

Com Port

 4 × RS232 × 3 + RS485 × 1



Oprating: -10oC ~ 50oC (1080p or 4K local   video display)

Storage:  -20oC ~ 70oC  (Restore to Operation Temperature 2hr   before use)

Humidity :

Oprating:  35% ~ 80% relative humidity, Non-condensing

Storage:  20% ~ 93% relative humidity, Non-condensing
