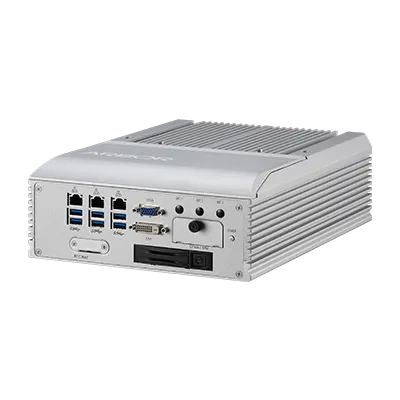

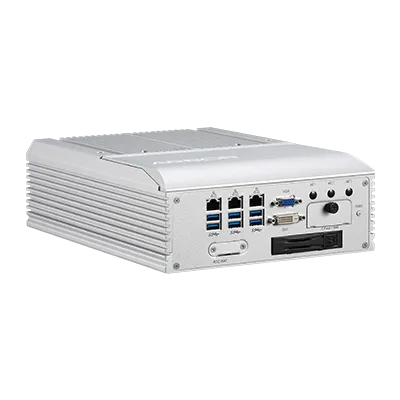

R-BOX FPC 9000

The R-BOX FPC 9000 is a high-performance industrial PC designed for demanding environments. With its Intel Xeon processor and up to 32GB of memory, it offers reliable and powerful computing capabilities. The rugged construction and wide operating temperature range make it ideal for use in harsh industrial environments.
Lagersaldo
Stock: 1

Robust and reliable industrial computer, featuring powerful Intel Xeon E3/6th & 7th generation Core i7/i5/i3 processors in an LGA1151 socket, paired with 2x 260-pin DDR4 SO-DIMM sockets for up to 32GB of 2400 MHz SDRAM. With an Intel C236 chipset and integrated Intel HD Graphics, this computer is built for heavy-duty computing tasks.

The FPC 9000 also comes with ample storage options, including 3x Serial ATA ports with 600MB/s HDD transfer rate, 1x CFast socket that is easily accessible from the outside, and 2x 2.5" SATA3 6Gb/s drive bays, one of which is external. The expansion bus includes 2x mini-PCI Express slots and an M.2 (NGFF) B-Key(2242) socket for optional LTE modules, as well as a digital I/O port with 8-bit digital I/O and 4-in/4-out with 1x DB-9 male connector and 2KV isolated protection.

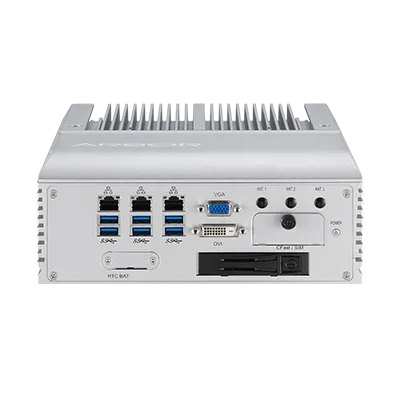

This industrial computer also comes with a wide range of I/O interface options, including 6x USB 3.0 ports on the front side, 3x RJ-45 ports for GbE on the front side, and 4x M12-male 8P connectors with total 30W power budget for PoE on the rear side. It also features a DB-15 female connector for analog RGB and a DVI-D female connector for digital video output, both with a maximum resolution of 1920 x 1080 @ 60Hz.

With an operating temperature range of -40 ~ 60°C, ambient with air flow, and up to -40 ~ 70°C with a Xeon E3-1268L-V5, this industrial computer can handle even the harshest environments. It also supports Windows 10 IOT, Windows 7/8.1 (for 6th gen Intel CPU), and Linux (Kernel: 4.x).

Built with durability in mind, FPC 9000 is constructed with an aluminum alloy and can be wall-mounted for convenience. With a weight of 6.4kg (16.31Ib) and dimensions of 225 x 292 x 90 mm (8.86" x 11.50" x 3.54"), this industrial computer is perfect for heavy-duty computing tasks in a variety of industrial settings.

System information:

  • CPU: Intel® Xeon® E3/6th & 7th generation Core™ i7/i5/i3 processor in LGA1151 socket
  • Memory: 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2400 MHz SDRAM up to 32GB
  • Chipset: Intel® C236
  • Graphics: Integrated Intel® HD Graphics
  • ATA: 3 x Serial ATA ports with 600MB/s HDD transfer rate

LAN Chipset:

  • 1 x Intel® i219LM PCIe controller w/ iAMT 11.0 (except i3)
  • 2 x Intel® WGI211AT GbE controllers
  • 4 x Intel® WGI211IT GbE controllers for PoE

Expansion:

  • 2 x mini-PCI Express slots interconnected with SIM card sockets for optional Wi-Fi/BT/3G/LTE/GPS (PCIex1 + USB2.0, full size)
  • 1 x mini-PCI Express slot for optional Wi-Fi/BT/GPS (PCIex1 + USB2.0, half size)
  • 1 x M.2 (NGFF) B-Key(2242) socket interconnected with SIM card socket for optional LTE module

Storage:

  • 1 x CFast socket, can be outside accessible
  • 1 x external 2.5” SATA3 6Gb/s Drive Bay
  • 1 x internal 2.5” SATA3 6Gb/s Drive Bay

IO Ports:

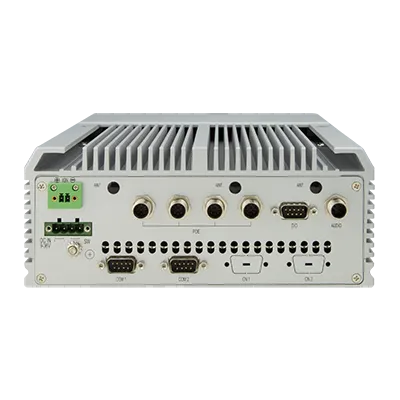

  • Serial Port: 2 x DB-9 male connectors (2 x RS-232/422/485), rear side
  • USB Port: 6 x USB 3.0 ports, front side
  • LAN: 3 x RJ-45 ports for GbE, front side
  • 4 x M12-male 8P connector, IP67 for PoE, A-coded, rear side (with total 30W power budget)
  • Video Port: 1 x DB-15 female connector for analog RGB, Max. resolution: 1920 x 1080 @ 60Hz; 1 x DVI-D female connector for digital video output, Max. resolution: 1920 x 1080 @ 60Hz
  • Antenna: 6 x SMA-female connectors’ holes for external antennas
  • Digital I/O Port: 8-bit digital I/O, 4-in/4-out w/ 1 x DB-9 male connector, 2KV isolated protection, rear side
  • Audio: 1 x M12-male 4P connector, D-code

Environmental:

  • Operating Temp.: -40 ~ 60°C, ambient w/ air flow, w/ 35W TDP CoreTM i CPU; -40 ~ 70°C, ambient w/ air flow, w/ Xeon™ E3- 1268L-V5 (CPU throttling may be happened while it run full loaded)
  • Storage Temp.: -40 ~ 85°C (-40 ~ 185°F)
  • Operating Humidity: 10 ~ 95% @ 70°C (non-condensing)
  • Vibration: 3 Grms/5~500Hz/random operation w/ SSD
  • Shock: Operating 40G (11ms), Non-operating 60G with SSD

Power Requirement:

  • DC Input: 12V~28V DC-in, 4-pin DC jack or 2-pin pluggable terminal block
  • Power Consumption: 65W (max.)

Mechanical and Environmental:

  • Dimensions: 240mm x 225mm x 86mm (9.4" x 8.9" x 3.4")
  • Operating Temperature: -20°C60°C (-4°F140°F)
  • Storage Temperature: -40°C85°C (-40°F185°F)
  • Humidity: 10%~90% RH, non-condensing
