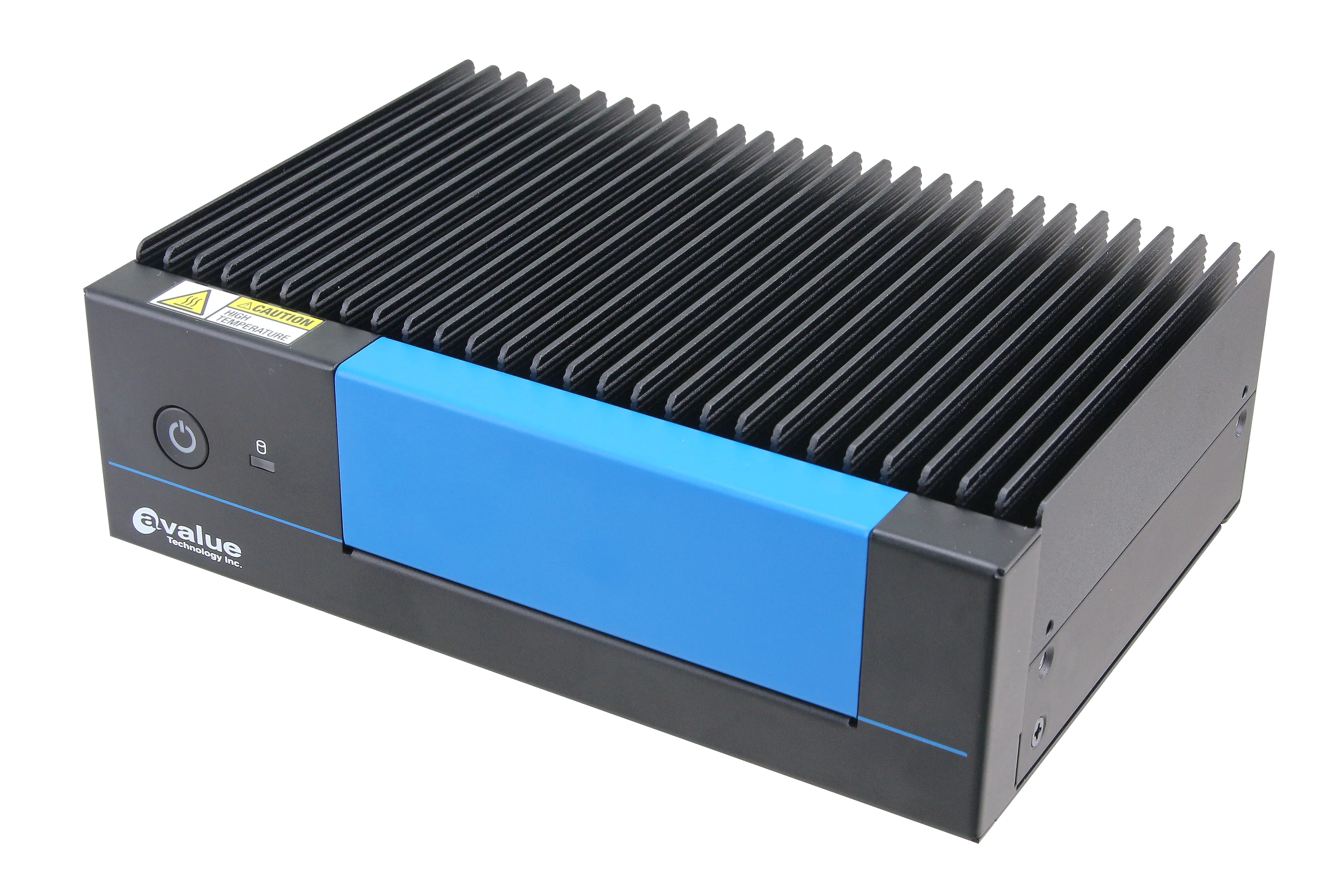

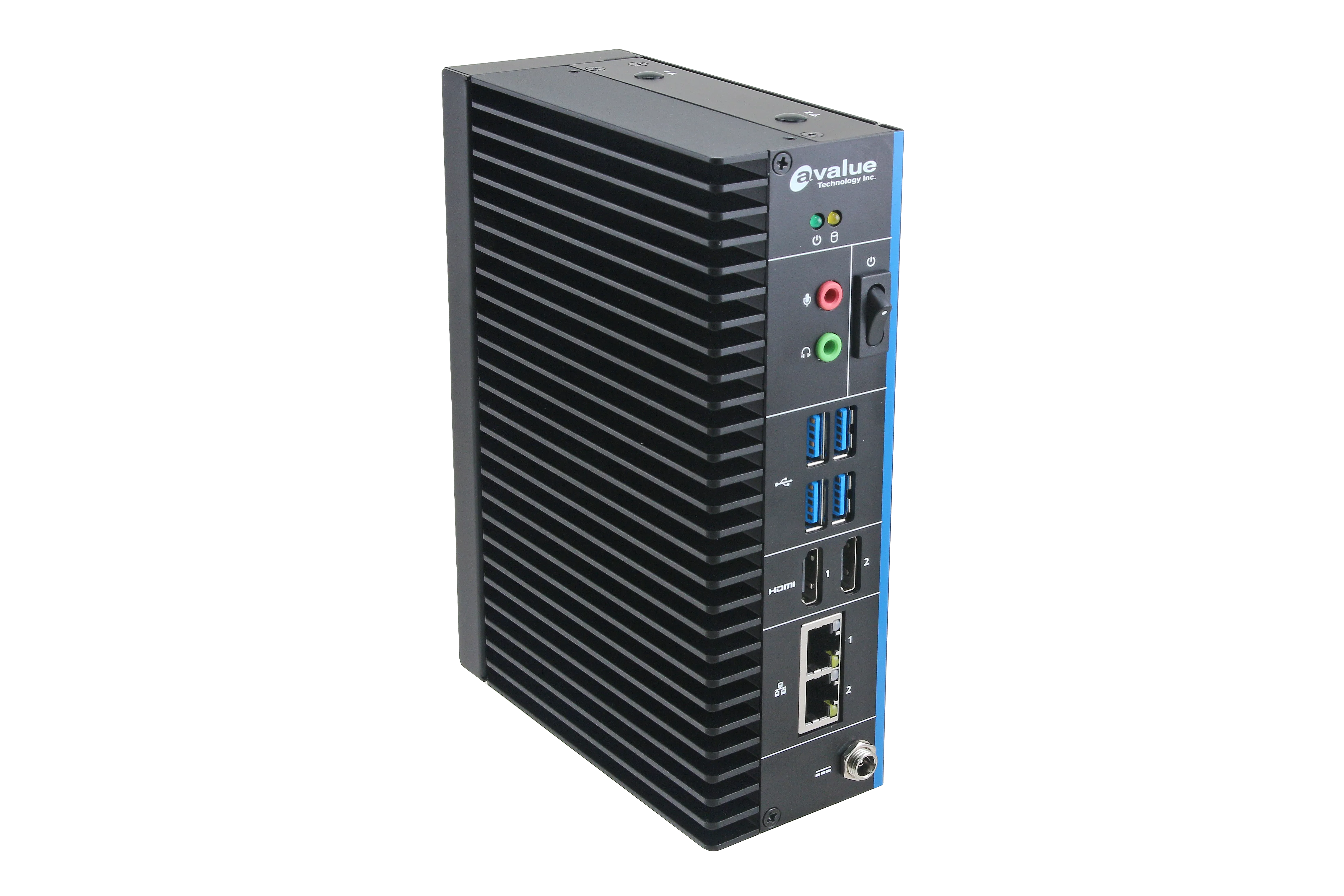

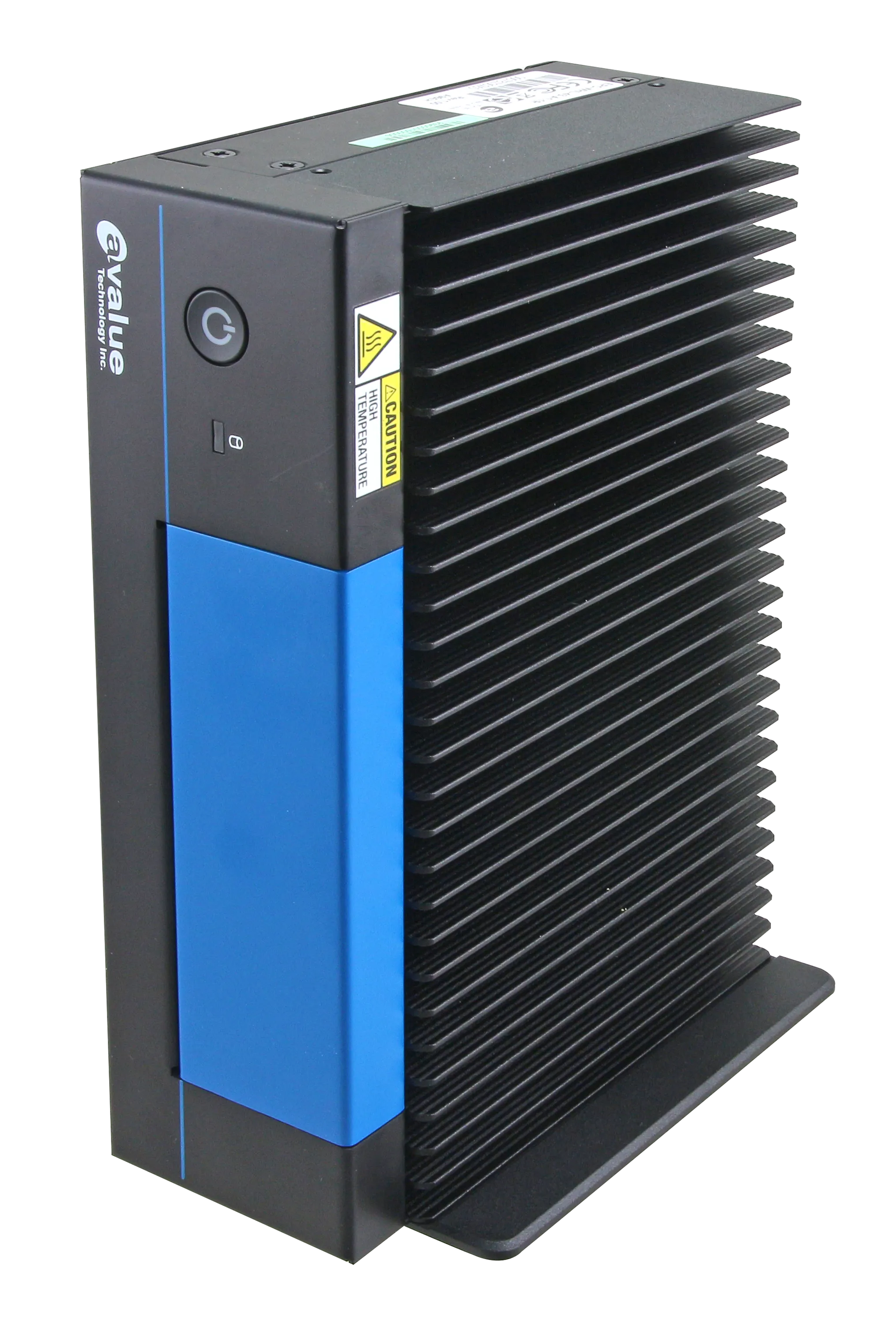

EPC-WHL Din Rail

This high-performance box PC is expertly engineered to easily integrate into any DIN-mounted environment, featuring a standard DIN mounting kit that simplifies the installation process. With a variety of processor options, including the powerful Intel® Core™ i7-8665UE and i5-8365UE, and support for up to 64GB of DDR4 system memory, the EPC-WHL Din Rail delivers speed and performance. Boasting a range of expansion options, such as two M.2 card slots and a 2.5" drive bay, it provides great flexibility to meet your individual needs.
Lagersaldo
Stock: 0

Introducing the EPC-WHL DIN Rail, a compact and powerful computer that sets the standard for industrial computer usage, IoT, digital signage, home automation, and edge computing applications. This little system packs a mighty punch in a small form factor.

With dual Gigabit Ethernet, HD Audio, and dual-channel support for up to 64GB DDR4 2400MHz memory, the EPC-WHL offers unparalleled performance and versatility. It also features TPM 2.0, RAID 0/1 support, and VESA mounting (factory option) for a truly seamless user experience.

But the impressive features of the EPC-WHL DIN rail don't end there. With a range of processor options, including the Intel® Core™ i7-8665UE Processor (8M Cache, up to 4.40 GHz), Intel® Core™ i5-8365UE Processor (6M Cache, up to 4.10 GHz), Intel® Core™ i3-8145UE Processor (4M Cache, up to 3.9GHz), and Intel® Celeron® Processor 4305UE (2M Cache, 2.00 GHz), this little system offers great performance and versatility.

Built with durability and robustness in mind, the EPC-WHL DIN rail is designed to withstand even the toughest environments, making it the perfect choice for a wide range of industrial and commercial applications. It also supports a variety of operating temperatures and humidity levels, ensuring reliable performance even in the toughest conditions.

Certified to meet CE, FCC Class B, and UKCA standards, the EPC-WHL DIN rail is a true testament to quality and safety. It also supports a range of operating systems, including Windows 10 and Linux.

System Information

  • Processor:
    • Intel® Core™ i7-8665UE Processor (8M Cache, up to 4.40 GHz)
    • Intel® Core™ i5-8365UE Processor (6M Cache, up to 4.10 GHz)
    • Intel® Core™ i3-8145UE Processor (4M Cache, up to 3.9GHz)
    • Intel® Celeron® Processor 4305UE (2M Cache, 2.00 GHz)
  • System Memory:
    • 2x 260-Pin SO-DIMM Socket, Max. Up to 64GB DDR4 2400MHz
  • BIOS Information:
    • AMI uEFI BIOS, 128Mbit SPI Flash ROM
  • Watchdog Timer:
    • H/W Reset, 1sec. ~ 65535sec.
  • H/W Status Monitor:
    • Monitoring system temperature and voltage with auto throttling control

Expansion

  • 1 x M.2 (Key-B, 2242/3042, PCIe, SATA, USB 3.0, USB 2.0, SIM Slot)
  • 1 x M.2 (Key-E, 2230, PCIe, USB2.0, CNVi)

Storage

  • 1 x 2.5" Drive Bay (7mm)
  • 1 x M.2 (2242) Key-B
  • Support RAID 0/1

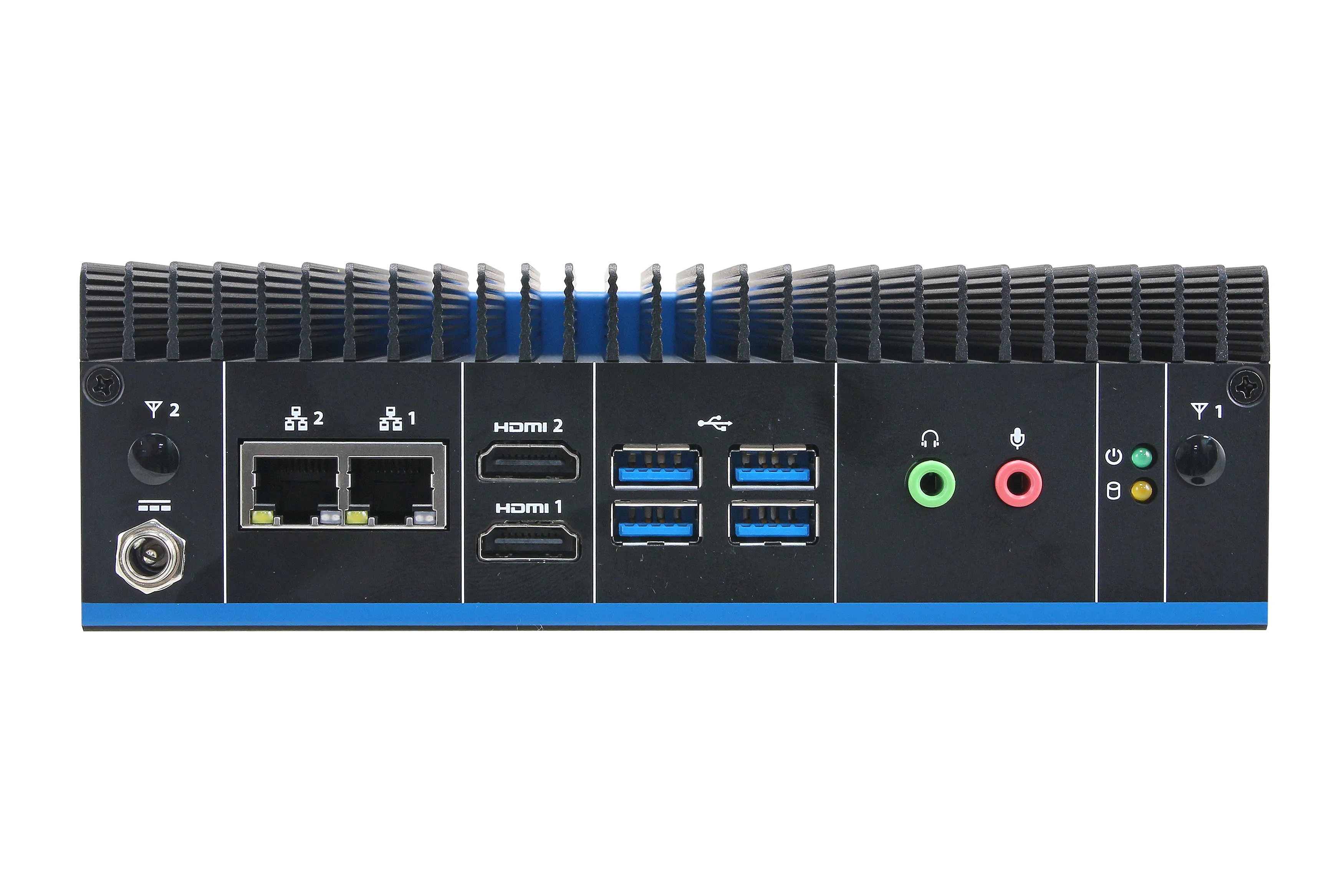

I/O

  • USB Port:
    • 4 x USB 3.1
  • Antenna:
    • 2 x Antenna Mounting with Dust Protection Cover

System Control

  • LED Indicator:
    • 1 x Power on/off LED on front side
    • 1 x Storage Access LED on front side

Display

  • Graphic Chipset:
    • Intel® UHD Graphics 620 (i7-8665UE, i5-8365UE, i3-8145UE)
    • Intel® UHD Graphics 610 (4305UE)
  • Spec. & Resolution:
    • 2 x HDMI 1.4: Max. Resolution 4096x2160@24Hz
  • Multiple Display:
    • Dual Display

Audio

  • Audio Codec:
    • Realtek ALC888S
  • Audio Interface:
    • 1 x Mic-in, 1 x Line-out

Certifications

  • Certification Information:
    • CE, FCC Class B, UKCA

Ethernet

  • LAN Chipset:
    • 1 x Intel® I210AT
    • 1 x Intel® I219LM
  • Ethernet Interface:
    • 10/100/1000 Base-Tx Gigabit Ethernet Compatible
  • LAN Port:
    • 2 x RJ-45

Power Requirement

  • DC Input:
    • Typical +12V
  • DC Input Connector:
    • Lockable DC Jack
  • ACPI:
    • Single Power ATX Support S0, S3, S4, S5
    • ACPI 5.0 Compliant
  • Power Mode:
    • AT/ATX (ATX is default setting)
  • Adapter:
    • Input: 100 ~ 240Vdc/ 50 ~ 60Hz
    • Output: 12V/10A AC-DC 120W Adapter

Mechanical & Environmental

  • Operating Temperature:
    • With extended temperature peripherals: -10°C ~ 50°C (14°F ~ 122°F) with 0.5m/s air flow
    • With extended temperature peripherals: -10°C ~ 40°C (14°F ~ 104°F) with 0.2m/s air flow
    • With 2.5” hard drive: 0°C ~ 40°C (32°F ~ 113°F) with 0.5m/s air flow
  • Storage Temperature: -30~70C° (-22°F ~ 158°F)
  • Operating Humidity: 40°C @ 95% Relative Humidity, Non-condensing
  • Dimension (W x L x H): 177mm x 123mm x 55mm (7” x 4.8” x 2.2")
  • Weight: 2.65lbs(1.2KG)
  • Vibration Test: With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
  • Shock Test: With SSD: 50G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
  • Mounting Kit: Din-Rail (Default)
  • Drop: ISTA 2A, IEC-60068-2-32 Test: Ed, 1 Corner, 3 Edges, 6 Faces
  • Construction:Aluminum + Metal
