EPC-WHL

The EPC-WHL 8th Gen Intel® Whiskey Lake Fanless Tiny System is a powerful and versatile PC designed for industrial computing, IoT, digital signage, home automation, and edge computing applications. It features a fanless design, dual Gigabit Ethernet, and support for up to 64GB DDR4 2400Mhz memory. It also comes with a range of processor options, supports various operating systems, and is certified to meet CE, FCC Class B, and UKCA standards. Experience exceptional performance and reliability with the EPC-WHL today.
Lagersaldo
Stock: 0

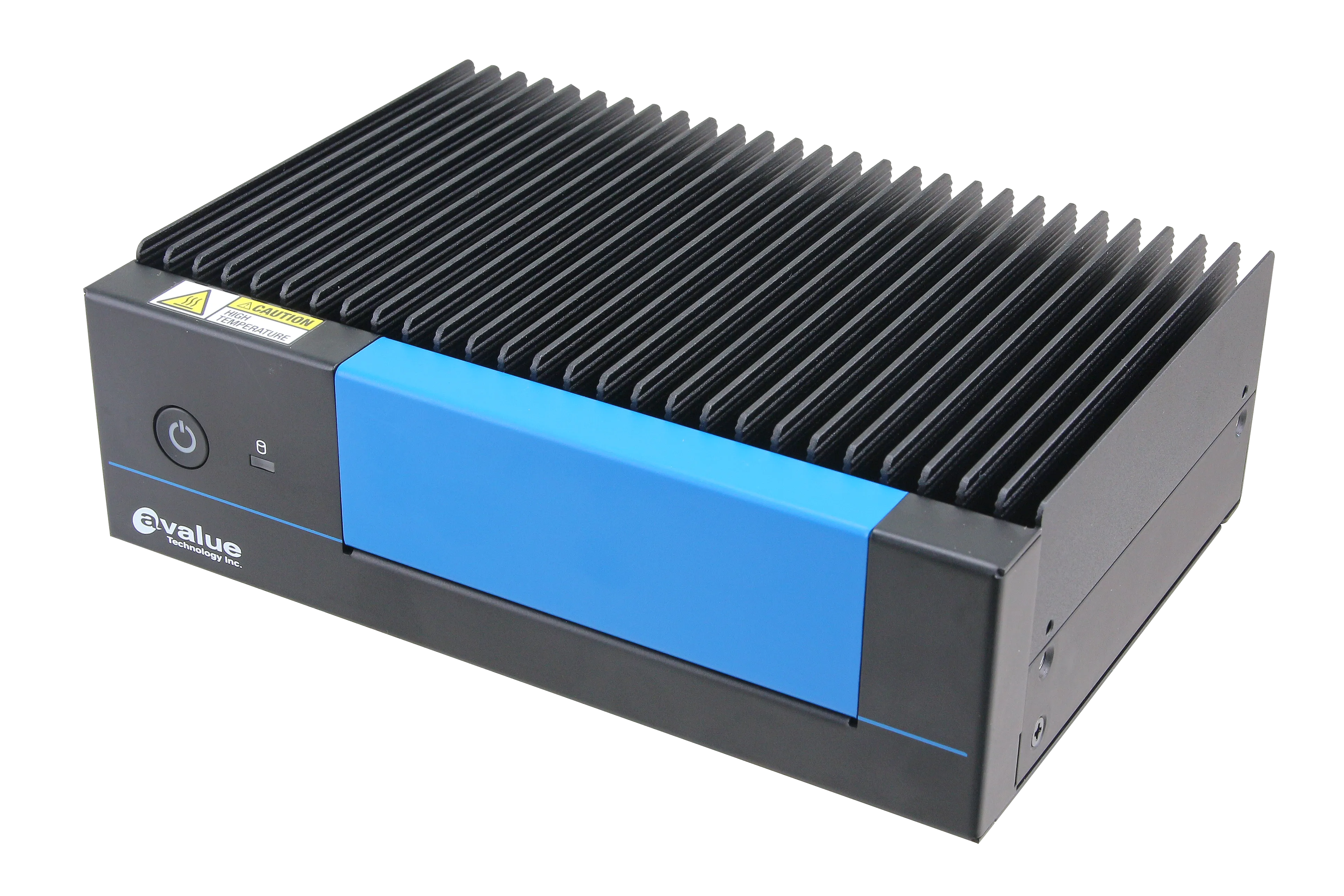

Introducing the revolutionary EPC-WHL 8th Gen Intel® Whiskey Lake Fanless Tiny System - a compact and powerful PC that sets the standard for industrial computing, IoT, digital signage, home automation, and edge computing applications.


With its fanless design and cutting-edge Intel® Whiskey Lake-U 4 Core Ultra Low 15W Processor, this tiny system packs a mighty punch in a small form factor. Equipped with dual Gigabit Ethernet, HD Audio, and dual-channel support for up to 64GB DDR4 2400Mhz memory, the EPC-WHL delivers unprecedented performance and versatility.


Boasting dual expansion capabilities via M.2 Key-B/E slots and dual HDMI ports with CEC Controller (Factory Option), this tiny system offers a wealth of connectivity options for multiple displays and more. It also features TPM 2.0, RAID 0/1 support, and VESA mounting (Factory Option) for a truly seamless user experience.


But the EPC-WHL's impressive features don't stop there. With a range of processor options including the Intel® Core™ i7-8665UE Processor (8M Cache, up to 4.40 GHz), Intel® Core™ i5-8365UE Processor (6M Cache, up to 4.10 GHz), Intel® Core™ i3-8145UE Processor (4M Cache, up to 3.9GHz), and Intel® Celeron® Processor 4305UE (2M Cache, 2.00 GHz), this tiny system offers unparalleled performance and versatility.


Built with durability and ruggedness in mind, the EPC-WHL is designed to withstand even the harshest environments, making it the perfect choice for a wide range of industrial and commercial applications. It also supports a variety of operating temperatures and humidity levels, ensuring reliable performance in even the toughest conditions.


Certified to meet CE, FCC Class B, and UKCA standards, the EPC-WHL is a true testament to quality and safety. It also supports a range of operating systems, including Windows 10 and Linux.


Experience the power and performance of the EPC-WHL System today and take your computing to the next level.

System Information

Processor: Intel® Core™ i7-8665UE Processor (8M Cache, up to 4.40 GHz); Intel® Core™ i5-8365UE Processor (6M Cache, up to 4.10 GHz); Intel® Core™ i3-8145UE Processor (4M Cache, up to 3.9GHz); Intel® Celeron® Processor 4305UE (2M Cache, 2.00 GHz)

System Memory: 2x 260-Pin SO-DIMM Socket, Max. Up to 64GB DDR4 2400MHz

BIOS Information: AMI uEFI BIOS, 128Mbit SPI Flash ROM


Expansion


Expansion: 1 x M.2 (Key-B, 2242/3042, PCIe, SATA, USB 3.0, USB 2.0, SIM Slot); 1 x M.2 (Key-E, 2230, PCIe, USB2.0, CNVi)


Storage


Storage: 1 x 2.5" Drive Bay (7mm); 1 x M.2 (2242) Key-B; Support RAID 0/1

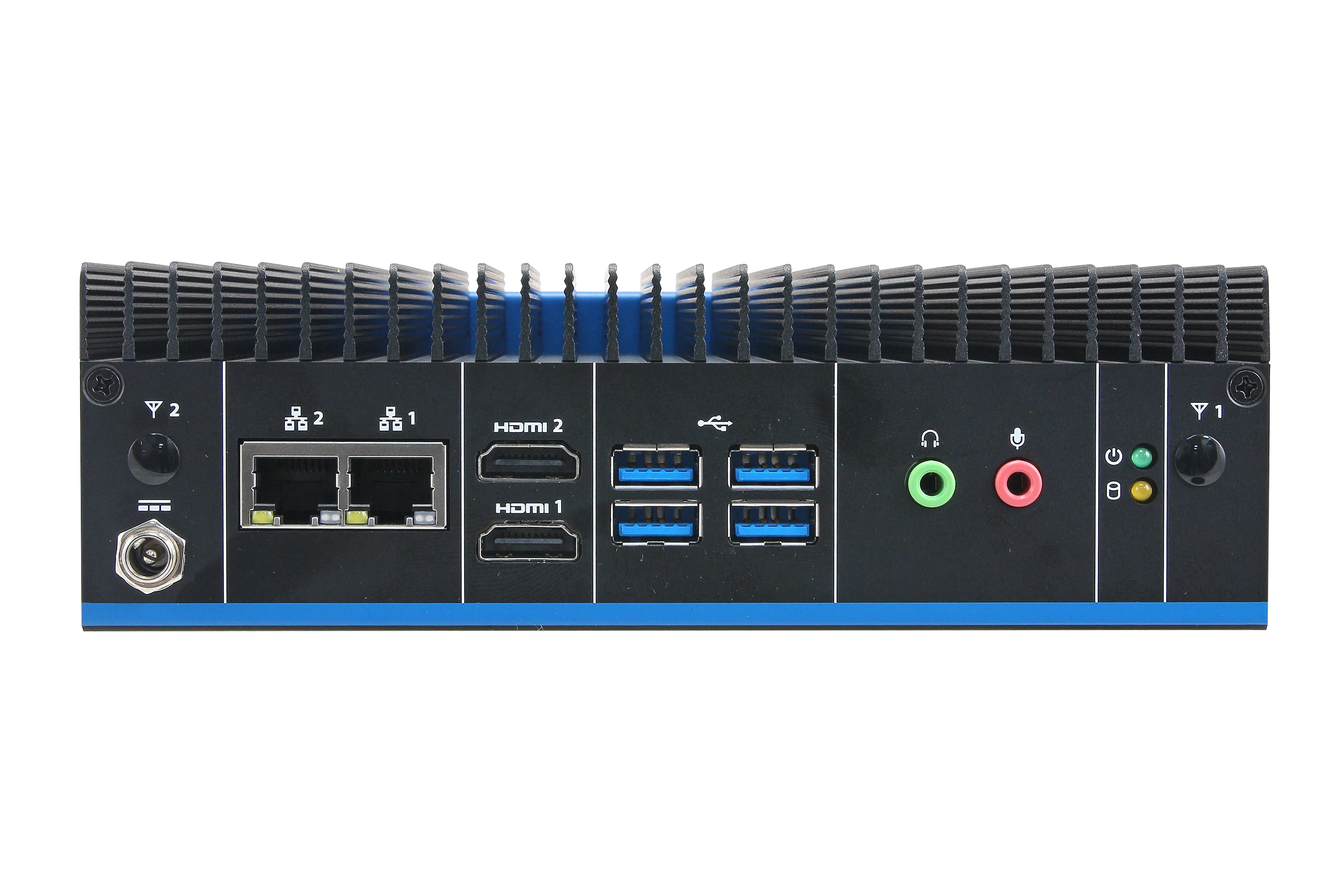

IO Ports


USB Port: 4 x USB 3.1, 2 x USB2.0 (Factory option)

COM Port: 1 x RS-232 (Factory Option)

Antenna: 2 x Antenna Mounting with Dust Protection Cover


Display


Graphic Chipset: Intel® UHD Graphics 620 (i7-8665UE, i5-8365UE, i3-8145UE); Intel® UHD Graphics 610 (4305UE)

Spec. & Resolution: 2 x HDMI 1.4: Max. Resolution 4096x2160@24Hz

Multiple Display: Dual Display


Audio


Audio Codec: Realtek ALC888S

Audio Interface: 1 x Mic-in, 1 x Line-out


Certifications


Certification Information: CE, FCC Class B, UKCA


Ethernet


LAN Chipset: 1 x Intel® I210AT; 1 x Intel® I219LM

Ethernet Interface: 10/100/1000 Base-Tx Gigabit Ethernet Compatible

LAN Port: 2 x RJ-45


Power Requirement


DC Input: Typical +12V; Lockable DC Jack; ACPI Single Power ATX Support S0, S3, S4, S5; ACPI 5.0 Compliant; Power Mode AT/ATX (ATX is default setting)

Adapter: Input: 100 ~ 240Vdc/ 50 ~ 60Hz Output: 12V/10A AC-DC 120W Adapter


Mechanical & Environmental


Operating Temperature: With extended temperature peripherals: -10°C ~ 50°C (14°F ~ 122°F) with 0.5m/s air flow; With extended temperature peripherals: -10°C ~ 40°C (14°F ~ 104°F) with 0.2m/s air flow; With 2.5” hard drive: 0°C ~ 40°C (32°F ~ 113°F) with 0.5m/s air flow

Storage Temperature: -30~70C° (-22°F ~ 158°F)

Operating Humidity: 40°C @ 95% Relative Humidity, Non-condensing
