Discover VMR15TGL: Your High-Performance Panel PC with Intel i5 Power
Introducing VMR15TGL, the cutting-edge panel PC designed to deliver exceptional performance and adaptability. Powered by the potent Intel Core i5-1145G7E processor, clocked at up to 2.60 GHz and boasting efficient operation at just 9W TDP, this panel PC is your versatile choice for a wide spectrum of industrial and commercial applications.
Windows 11 Ready with TPM 2.0 Support
VMR15TGL is future-proof, offering compatibility with Windows 11, and features an embedded TPM 2.0 module to enhance security and safeguard data integrity. Crafted to meet the demands of contemporary workplaces, it combines reliability and innovation seamlessly.
Experience Advanced Technology
- Empowering Processor: The Intel Core i5-1145G7E processor, with a clock speed of up to 2.60 GHz, provides VMR15TGL with the processing power needed for demanding applications.
- Ample Memory: Backed by 8 GB of DDR4 3200 MHz SO-DIMM, expandable to 32 GB, VMR15TGL handles memory-intensive tasks with ease.
- Versatile Storage: The panel PC features a 2.5" drive bay compatible with 7mm HDDs or SSDs and supports M.2 SSDs for faster and more reliable storage solutions.
- Flexible Connectivity: VMR15TGL offers multiple USB 3.2 ports, RS-232/422/485, RS-232, and HDMI connectivity, catering to your peripheral device needs.

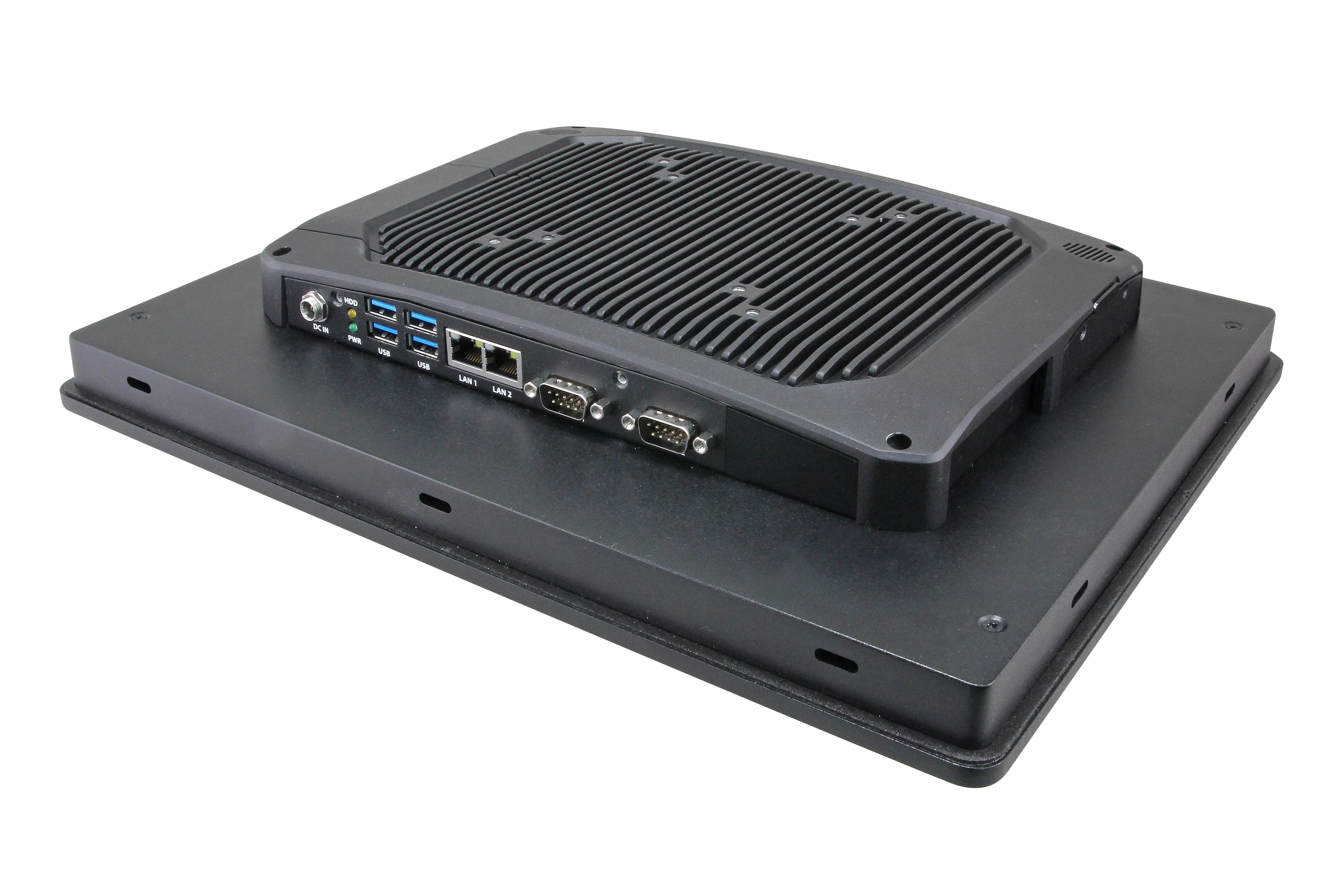

- Compact and Durable: Housed in a robust aluminum alloy chassis with an IP65-rated front panel, VMR15TGL excels in challenging work environments.
- Easy Installation: VMR15TGL supports VESA mounting with both 100mm x 100mm and 75mm x 75mm options, making integration into diverse workspaces effortless.
Embrace the Future with VMR15TGL
VMR15TGL is your Windows 11-ready, secure, and high-performance panel PC, offering versatile connectivity options. Whether it's in industrial facilities or commercial settings, VMR15TGL is poised to meet your unique requirements. Elevate your productivity with technology built for tomorrow.
System Settings
- CPU: Intel® Core™ i5-1145G7E (15W, 8M Cache, up to 2.60 GHz)
- I/O Chip: EC ITE IT8528E
- System Memory: 8 GB DDR4 3200 MHz SO-DIMM, up to 32 GB (In-BEND ECC support)
- Watchdog Timer: H/W Reset, 1 sec. ~ 65535 sec./1 sec. step
- H/W Status Monitor: Monitoring CPU and System Temperature and Voltage
- TPM: Onboard NuvoTon NPCT754AABYX with TPM 2.0 support
- Touch Screen: 5-wire resistive (USB Penmount)
I/O Connectors
Internal I/O:
- 1 x 2.5" drive bay (restricted to 7 mm HDD) with 128 GB Industrial WT SSD
- 1 x M.2 Key-B 2242/3042/3052 with SIM card slot, support SATA III
- 1 x M.2 Key-E 2230, support PCIex1, USB2.0
- 1 x SATA II
- 1 x Optional 80-pin internal expansion module (only 1 of below options): (4 x USB 3.0), (1 x HDMI + Audio), (1 x HDMI + mPCle with SIM slot), (CAN-BUS)

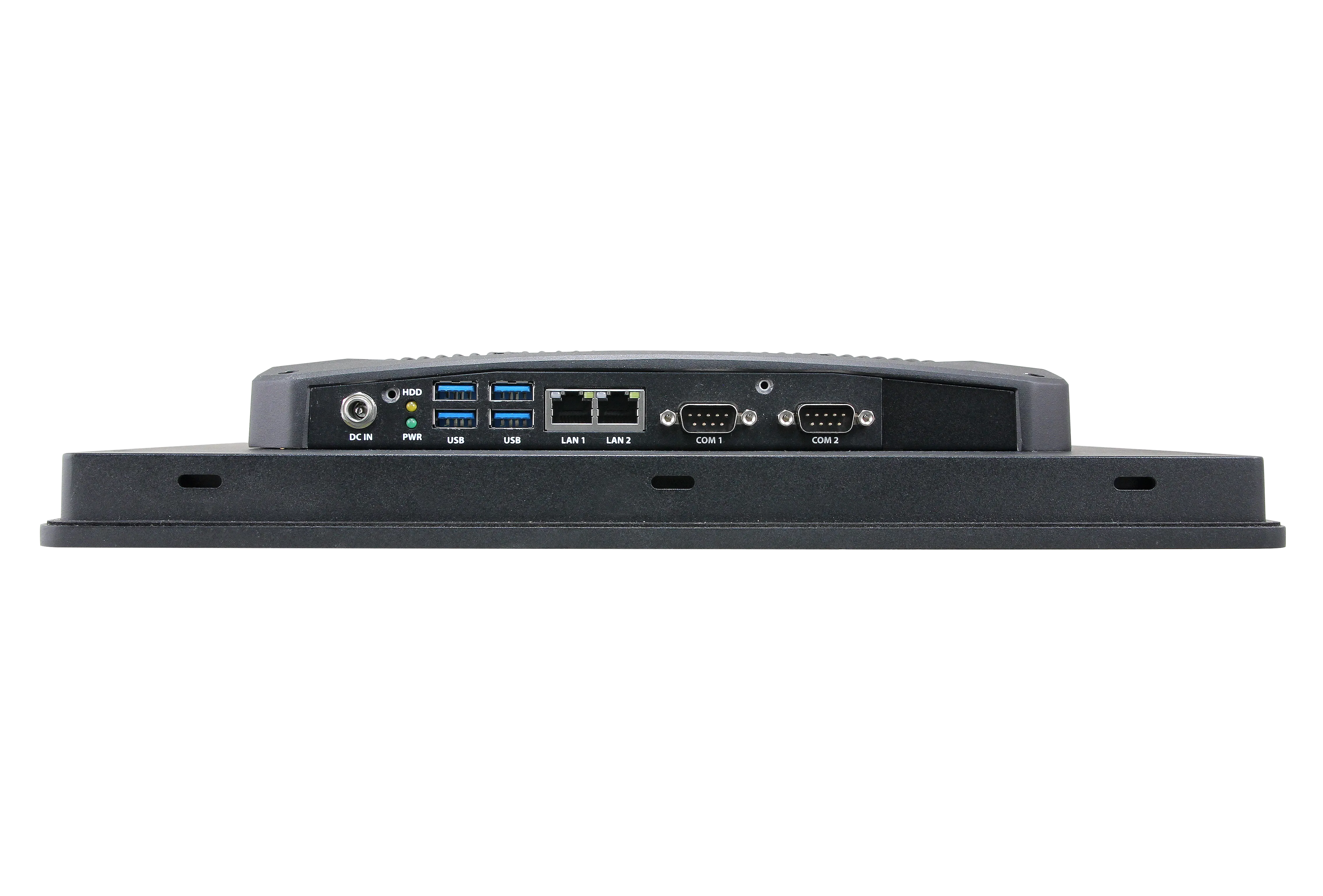

Rear I/O:
- 4 x USB 3.2
- 1 x RS-232/422/485
- 1 x RS-232
- 2 x RJ45 (Intel® I225-IT 2.5 Gigabit Ethernet)
- 2 x Speaker out (2 x 2W, Line out via expansion)
- 1 x HDMI (via expansion) Resolutions Up to 1920 x 1200 @ 60 24bpp
Antenna:
- 2 x RP-TNC / TNC (optional)
- 1 x RP-SMA in the bottom side for external antenna configuration (optional)
Power
System Power: +12 — 24 VDC AC Adaptor Input: 110V ~ 250V (50 ~ 63Hz) AC Adaptor Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter
Environment
Operation Temperature: Operating: -20 ~ 60°C, Storage: -20 ~ 70°C Storage Temperature: 40°C @ 95% Relative Humidity, Non-condensing IP Proof: IP65 Front Panel, IP41 back panel Chassis: Aluminum Alloy Chassis
Vibration Test: With SSD/mSATA: 3Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30 mins/axis
Shock Test: Operating with SSD/CFast/mSATA: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G
Dimensions
Height: 274.5 mm
Width: 350.5 mm
Depth: 54.5 mm
Weight: 3.7 kg

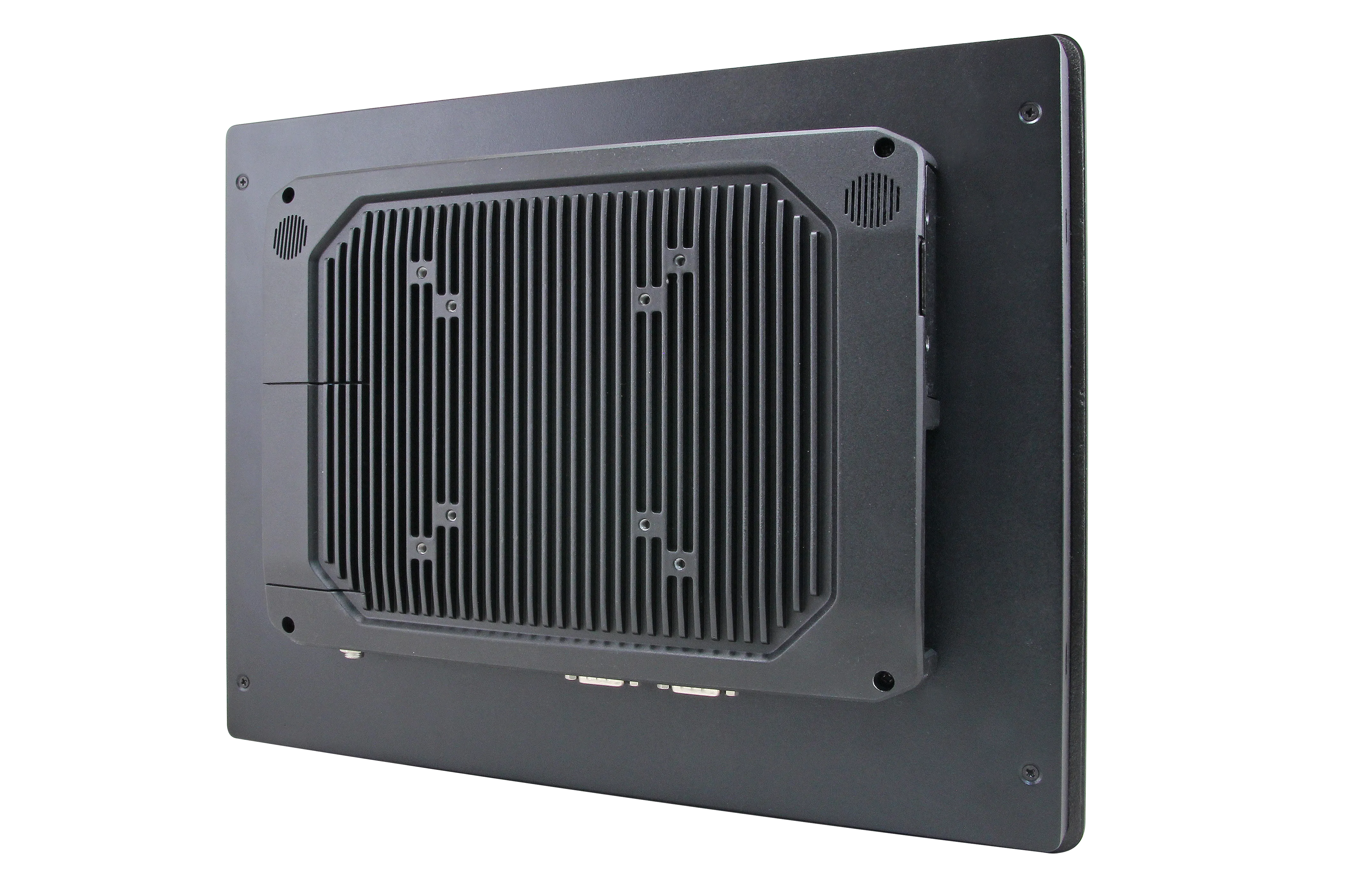

Mounting
VESA: 100 mm x 100 mm, 75 mm x 75 mm
