Embrace the Future with Windows 11-Ready Panel PCs
Discover the VMR12E, the cutting-edge panel PC designed to bring you outstanding performance and adaptability. Powered by the robust Intel Atom® x6413E processor, delivering swift and efficient performance at a mere 9W TDP, this panel PC is your versatile choice for a wide range of industrial and commercial applications.
Ready for Windows 11 with TPM 2.0 Support The VMR12E is future-proof with its Windows 11 compatibility and built-in TPM 2.0 module, enhancing security and ensuring data integrity. Crafted to meet the demands of contemporary workspaces, it offers both reliability and innovation.
Experience the TechnologyFF
Empowering Processor: With the Intel Atom® x6413E processor clocked at up to 3.00 GHz, the VMR12E provides the processing power needed for demanding applications.
Expansive Memory: Backed by 8 GB of DDR4 3200 MHz SO-DIMM, expandable to 32 GB, the VMR12E effortlessly manages memory-intensive tasks.
Versatile Storage: The panel PC includes a 2.5" drive bay compatible with 7mm HDDs or SSDs and supports M.2 SSDs for faster, more dependable storage solutions.
Flexible Connectivity: Featuring multiple USB 3.2 ports, RS-232/422/485, RS-232, and HDMI connectivity, the VMR12E caters to your peripheral device needs.

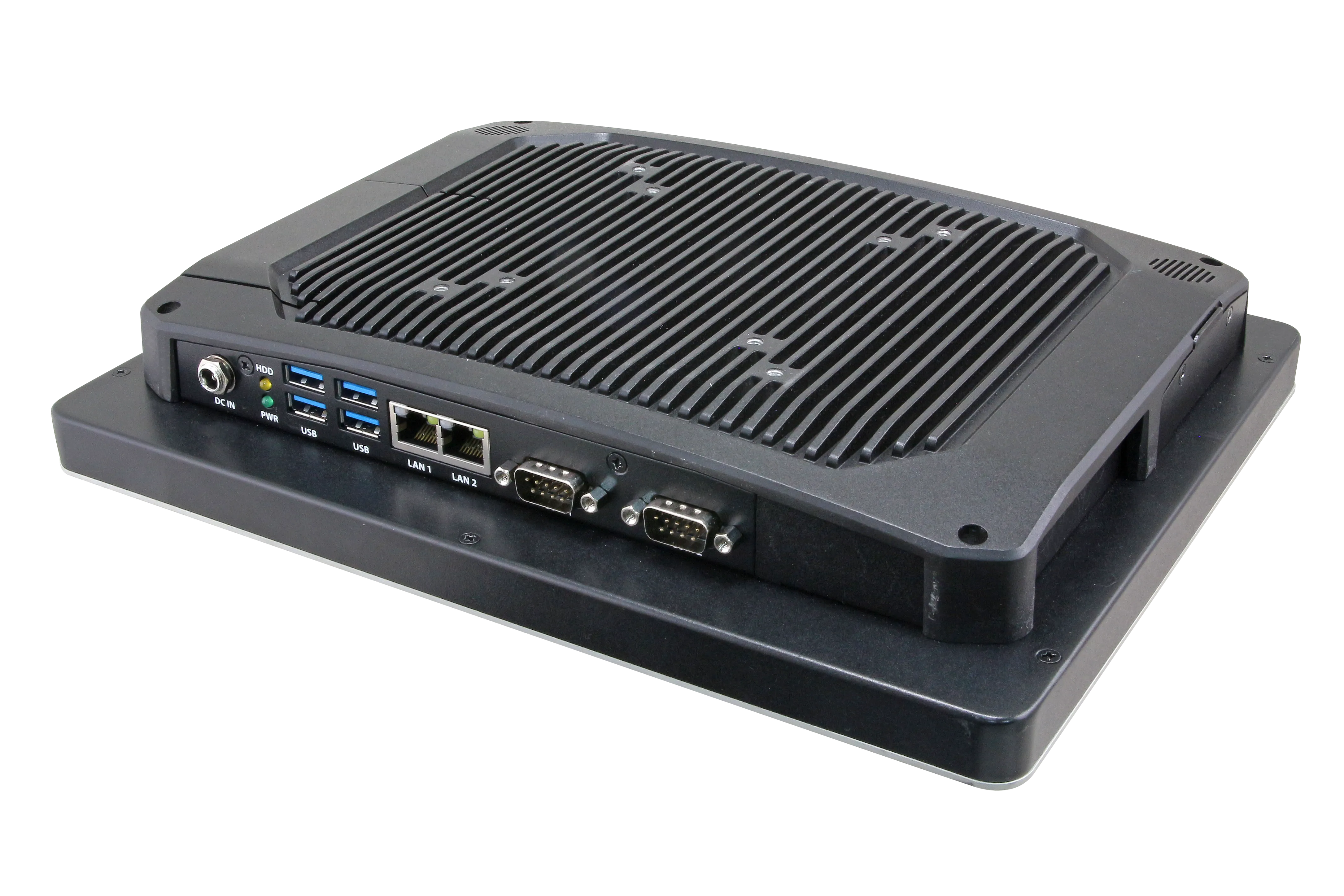

Compact and Durable: Housed in a rugged aluminum alloy chassis with an IP65-rated front panel, the VMR12E excels in challenging work environments.

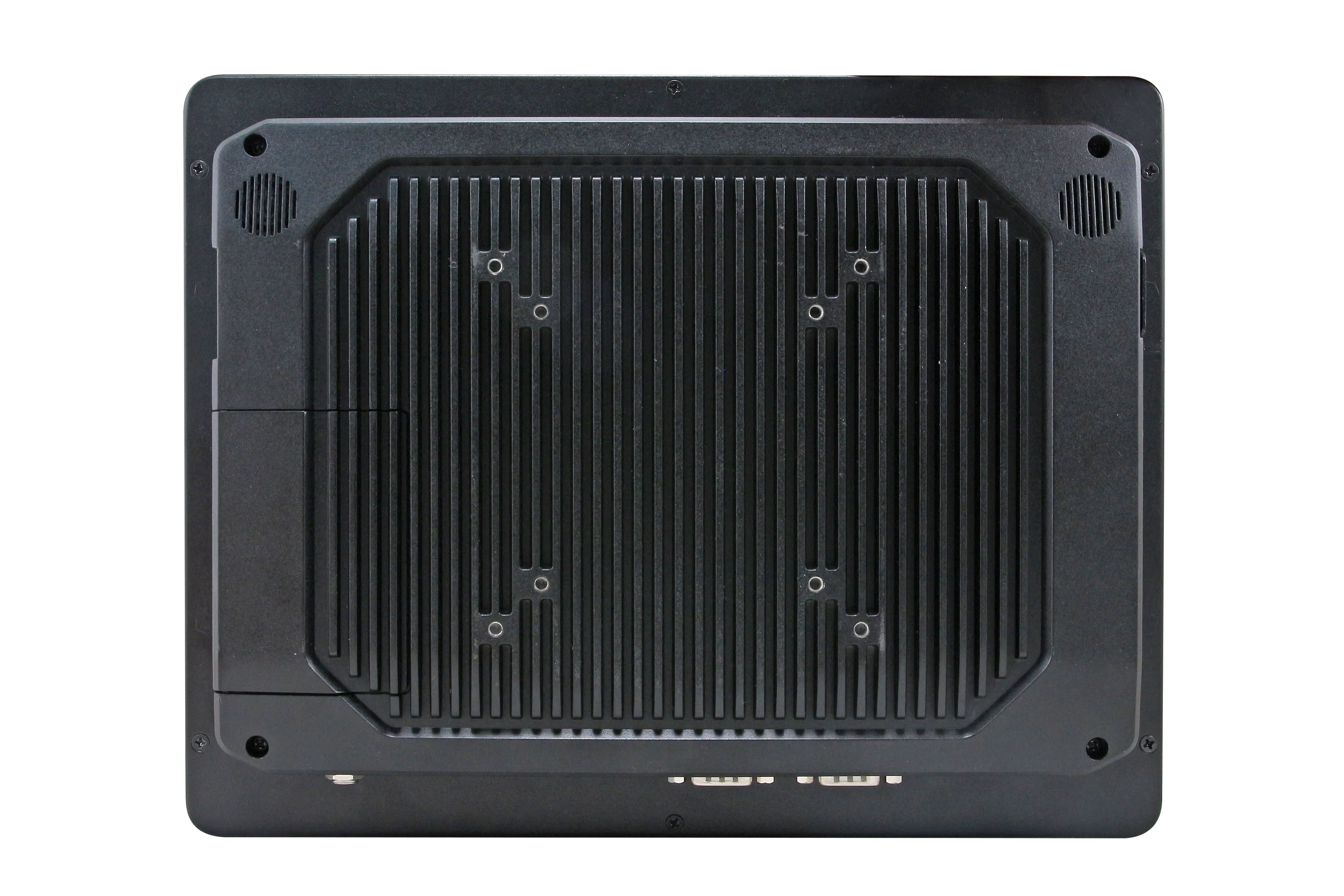

Easy Installation: The VMR12E supports VESA mounting with both 100mm x 100mm and 75mm x 75mm options, making it effortless to integrate into diverse workspaces.
Embrace the future with the VMR12E, your Windows 11-ready, secure, and high-performance panel PC with versatile connectivity options. Whether it's within industrial facilities or commercial settings, the VMR12E is poised to meet your unique requirements. Elevate your productivity with technology that's built for tomorrow.
System Preferences
- CPU: Intel Atom® x6413E Processor (9W, 1.5M Cache, up to 3.00 GHz)
- I/O Chip: EC ITE IT5571
- System Memory: 8GB DDR4 3200 MHz SO-DIMM, up to 32GB (In-BEND ECC supported)
- Watchdog Timer: H/W Reset, 1 sec. ~ 65535sec./1sec. step
- H/W Status Monitor: Monitoring CPU & System Temperature and Voltage
- TPM: Onboard NuvoTon NPCT754AABYX support TPM 2.0
- Touch screen: 5 Wires resistive (USB Penmount)
I/O Connectors Internal I/O:
- 1 x 2.5" Drive Bay (7mm HDD Restricted) Fitted with 128GB Industrial WT SSD
- 1 x M.2 Key-B 2242/3042/3052 with SIM card slot, support SATA III
- 1 x M.2 Key-E 2230, support PCIex1, USB2.0
- 1 x SATA II
- 1 x Optional 80-pin internal expansion module (only 1 of below options): (4 x USB 3.0), (1 x HDMI + Audio), (1 x HDMI + mPCle with SIM slot), (CAN-BUS)

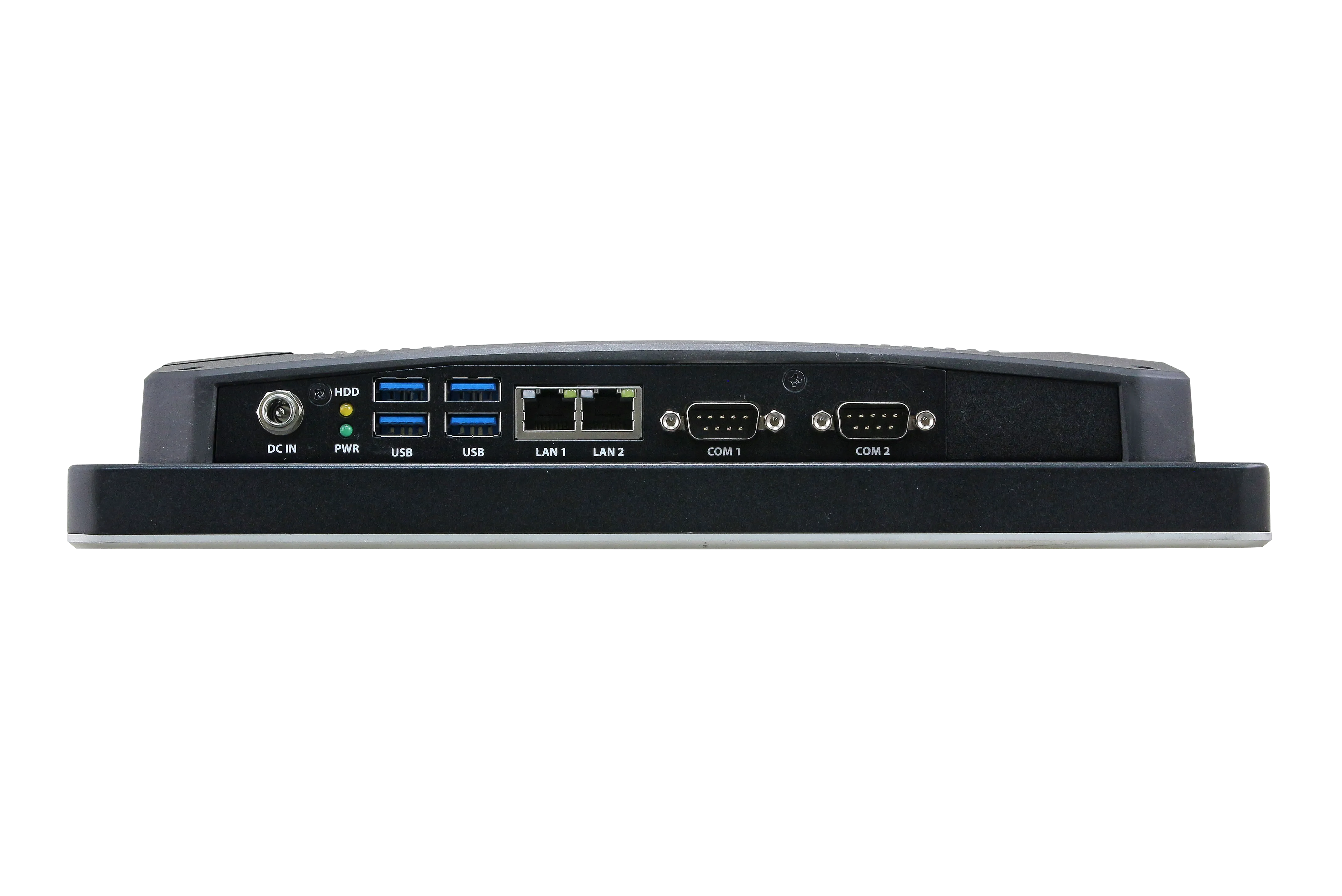

Rear I/O:
- 4 x USB 3.2
- 1 x RS-232/422/485
- 1 x RS-232
- 2 x RJ45 (Intel® I225-IT 2.5 Gigabit Ethernet)
- 2 x Speaker out (2 x 2W, Line out via expansion)
- 1 x HDMI (via expansion) Resolutions Up to 1920 x 1200 @ 60 24bpp
Antenna
- 2 x RP-TNC / TNC (optional)
- 1 x RP-SMA in the bottom side for external antenna configuration (optional)
Power
- System Power: +12 — 24 VDC
- AC Adaptor Input: 110V ~ 250V (50 ~ 63Hz)
- AC Adaptor Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter
Environment
- Operation Temperature: Operating: -20 ~ 60°C, Storage: -20 ~ 70°C
- Storage Temperature: 40°C @ 95% Relative Humidity, Non-condensing
- IP Proof: IP65 Front Panel, IP41 back panel
- Chassis: Aluminium Alloy Chassis
- Vibration Test: With SSD/mSATA: 3Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30 mins/axis
- Shock Test: Operating with SSD/CFast/mSATA: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G
Dimensions
- Height: 221,1 mm
- Width: 283 mm
- Depth: 51,2 mm
- Weight: 2,4 kg
Mounting
- VESA: 100mm x 100mm, 75mm x 75mm
