Robust design för pålitlig prestanda
- Byggda för att klara krävande arbetsförhållanden och tåla fall och stötar
- IP67-klassning för skydd mot damm och vatten
- Corning Gorilla Glass-skärm för maximal tålighet och skydd mot repor
Kompakt och användarvänlig
- Ergonomisk design för bekväm användning hela dagen
- 5-tums HD-skärm med multi-touch för enkel navigering och interaktion
- Lättanvända knappar och intuitiv pekskärm
Kraftfull prestanda för snabb datainsamling
- Qualcomm Snapdragon-processor för snabb och tillförlitlig prestanda
- Inbyggd 1D/2D-streckkodsläsare för snabb och exakt skanning av streckkoder
- NFC-stöd för enkel och säker dataöverföring och autentisering
Pålitlig anslutning och kommunikation
- Wi-Fi och Bluetooth för trådlös anslutning och dataöverföring
- Push-to-Talk (PTT) för snabb och direkt kommunikation
- GPS-stöd för exakt platsbestämning och navigering (TC26)
Lång batteritid och utbytbart batteri
- Lång batteritid för kontinuerlig användning under hela arbetsdagen
- Möjlighet att byta batteri för att undvika avbrott i arbetsflödet

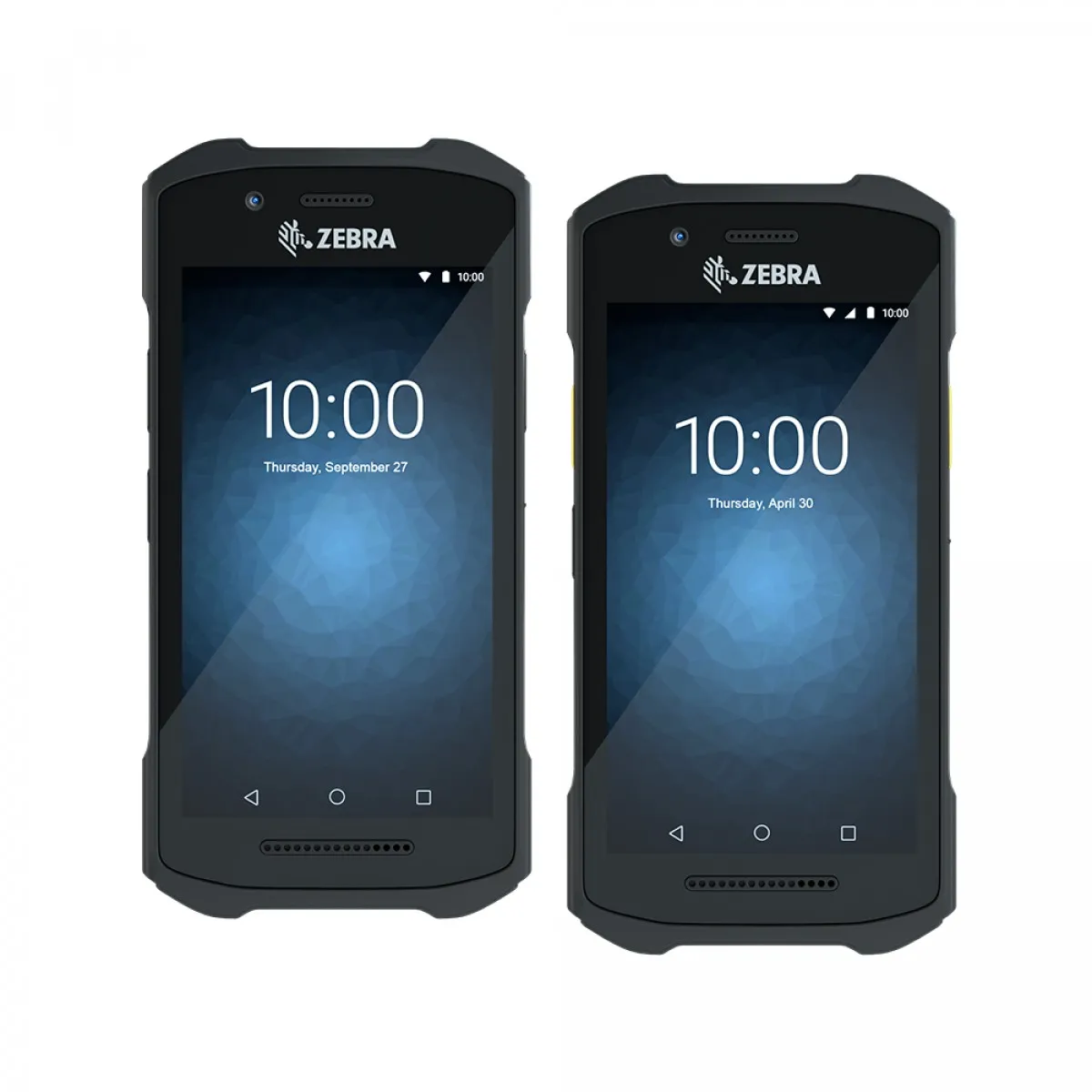

TC21/TC26 Handdatorer är det perfekta valet för verksamheter som behöver pålitliga och effektiva mobila lösningar. Oavsett om det handlar om lagerhantering, detaljhandel eller servicebranschen, kommer TC21/TC26 att optimera arbetsflöden och öka produktiviteten.
Physical Characteristics
| Dimensions | With standard battery: 6.22 in. L x 3.11 in. W x 0.54 in. D 158 mm L x 79 mm W x 13.7 mm D With extended battery: 6.22 in. L x 3.11 in. W x 0.68 in. D 158 mm L x 79 mm W x 17.3 mm D |
| Weight | 8.32 oz./236 g with standard battery; 269 g with extended battery |
| Display | 5.0 in. color HD (1280 x 720); LED backlight; Corning® Gorilla® Glass |
| Imager Window | Corning® Gorilla® Glass |
| Touch Panel | Capacitive Touch Panel; multi-touch |
| Power | Removable/serviceable rechargeable Li-Ion Standard battery: ≥ 3300 mAh/12.54 Wh Extended battery: 5260 mAh/20.25 Wh |
| Expansion Slot | One 128 GB micro SD slot |
| SIM | 1 Nano SIM slot; optional eSIM (TC26 only) |
| Network Connections | TC21: WLAN, WPAN, USB 2.0 hi-speed (host and client) TC26: WWAN, WLAN, WPAN, USB 2.0 hi-speed (host and client) |
| Notifications | Audible tone; multi-color LEDs; vibration |
| Keypad | On-screen keypad |
| Audio | Speaker - 1 Watt Voice support (Internal speaker/receiver and microphones) |
| Buttons | Scan on each side; volume up/down; power; push-to-talk (PTT) keys |
Performance Characteristics
| CPU | Qualcomm SnapdragonTM 660 octa-core, 1.8 GHz or 2.2 GHz (select configurations) |
| Operating System | TC21: Android 11; upgradeable to Android 14 TC26: Android 11; upgradeable to Android 14 |
| Memory | 4 GB RAM/64 GB Flash memory; 3 GB RAM/32 GB Flash memory |
User Environment
| Operating Temp. | 14°F to 122°F / -10°C to 50°C |
| Storage Temp. | -30°F to 158°F / -30°C to 70°C |
| Humidity | 5% - 95% non condensing |
| Drop Spec. | 5 ft./1.5 m drop to concrete per MIL-STD-810G with optional protective boot 4 ft./1.2 m drop to concrete per MIL-STD-810G across operating temperature |
| Tumble Spec. | 550 tumbles, 1.6 ft./0.5 m with boot |
| Sealing | IP67 |
| Electrostatic Discharge (ESD) | +/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge |
Interactive Sensor Technology (IST)
| Light Sensor | Automatically adjusts display backlight brightness |
| Motion Sensor | 3-axis accelerometer with MEMS Gyro |
| Proximity Sensor | Automatically detects when the user places the handset against head during a phone call to disable display output and touch input. |
Data Capture
| Scanning | SE4100 1D/2D imager SE4710 1D/2D imager Camera scanning (SKU dependent) |
| Camera | Rear camera 13 MP; optional front camera 5 MP |
| NFC | Integrated; MIFARE, ISO 14443 A&B , FeliCa , ISO 15693 and NFC Forum supported cards; read range up to 50 mm; support for Apple VAS1 / Google Smart Tap1 |
Wireless WAN Data and Voice Communications
| Radio Frequency Band (TC26 only) | TC26 North America
TC26 Rest of World
TC26 China
|
| Voice Communications | Optional Push-to-Talk (PTT) Express Mobility DNA software application for instant PTT walkie-talkie style calls inside the four walls. Optional Workforce Connect Push-to-Talk (PTT) Pro2 Mobility DNA easy-to-deploy, cost-effective subscription-based software application that provides instant PTT walkie-talkie style calls inside and outside the four walls via an easy-to-deploy subscription service. Optional Workforce Connect Voice3 to turn TC21/TC26 devices into fully-featured PBX handsets with a custom interface that makes it easy to execute even the most complex telephony features — eliminating the need to purchase and manage additional voice-enabled devices. |
| GPS (TC26 only) | GPS with A-GPS: Glonass; BeiDou; Galileo |
Wireless LAN
| WLAN Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w; Wi-Fi™ certified; IPv4, IPv6, 1x1 MU-MIMO |
| Data Rates | 2.4 GHz: 802.11b/g/n — 20MHz, 40MHz — up to 150 Mbps 5 GHz: 802.11a/g/n/ac – 20MHz, 40MHz, 80MHz – up to 433 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 Channel 36-165 (5180-5825MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA Enterprise 192-bit Mode (GCMP-256) - EAP-TLS; Enhanced Open (OWE) |
| Certifications | 802.11a/b/g/n; WPA; WPA2; WPA3 |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r (Over-The-Air); OKC |
Wireless PAN
| Bluetooth | Bluetooth 5.0 BLE, Class 2 |
Environmental Compliance
For a complete list of product and materials compliance, please visit |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the TC21 and TC26 are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit: www.zebra.com/warranty |
Recommended Services
| Protect your TC21/TC26 mobile devices with Zebra OneCare™ SV, the right-priced service for Zebra’s right-priced mobile devices. You get two years of protection against failure, coverage for normal wear and tear, live and online technical support, priority repair turnaround time and free shipping, as well as cloud-based visibility into reports on your devices — including repairs, tech support cases, contracts, LifeGuard Analytics for Android security patch status, and more. For more information on recommended services, please visit www.zebra.com/zebraonecare |
Footnotes
| 1. Apple VAS and Google Smart Tap available Q3 2022; select configurations only; contact your Zebra sales representative for details. 2. To enable maximum performance and voice quality for Workforce Connect PTT Express, PTT Pro and other VoWiFi solutions, the Mobility DNA Enterprise License is recommended. 3. Mobility DNA Enterprise License is required to deploy Workforce Connect Voice and other 3rd party full duplex voice solutions for optimal performance and support. 4. Based on typical user profiles. 5. Workstation cradle available Q4 2022; supported on 4GB RAM configurations only. 6. Zebra DNA Cloud available Q3 2022. Specifications subject to change without notice. For details related to Common Criteria support, please visit: www.zebra.com/commoncriteria |
Mobility DNA
| Mobility DNA solutions help you get more value out of our mobile computers by adding functionality as well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features, please visit www.zebra.com/mobilitydna Mobility DNA Professional integrated solutions are preloaded and pre-licensed, provided at no cost. To take advantage of the complete Mobility DNA offerings for the TC21/TC26, a Mobility DNA Enterprise license is required. For more information about Mobility DNA tools, please visit www.zebra.com/mobility-dna-kit |
