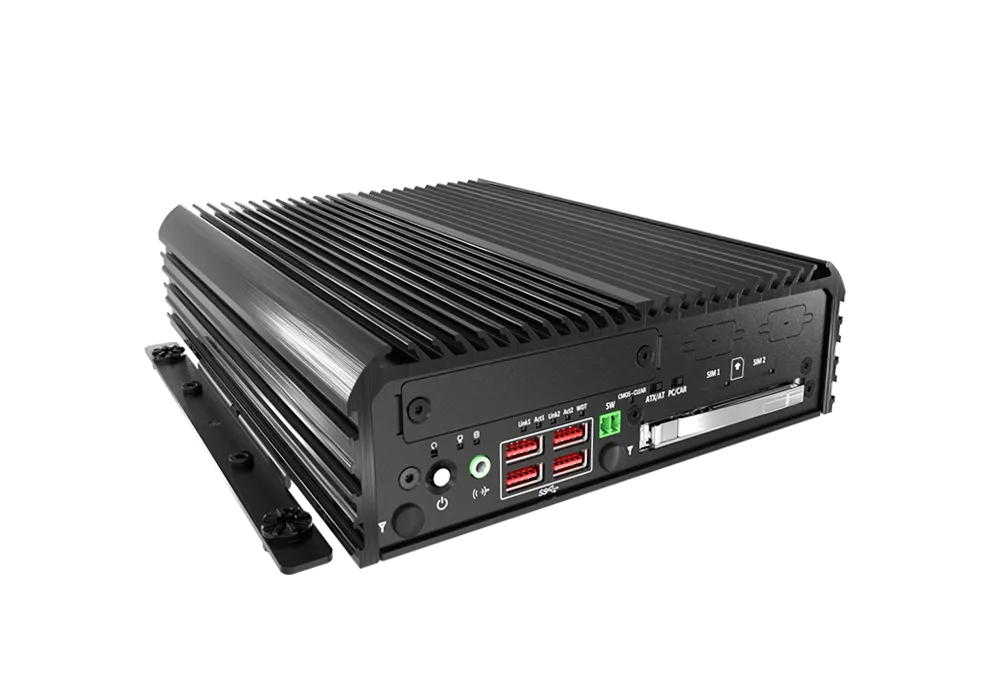

Tactile RCO-3000-CML

Tactile RCO-3000-CML: En kompakt, fläktlös industriell dator drivs av 10:e Gen Intel® Core™ i5-10500TE Processor. Har robust design, omfattande I/O och integrerade AI-funktioner.

Tactile RCO-3000-CML är ett bevis på den senaste rugged edge-datatillverkningen. Med sin kompakta formfaktor garanterar denna fläktlösa industriella dator kraftfull prestanda även under de tuffaste förhållandena. Byggd med 10:e Gen Intel® Core™ i5-10500TE Processor, lovar den snabb bearbetning och multitasking. Dess robusta design kan stå emot brett temperaturområde, stötar och vibrationer. EDGEBoost I/O-integration förbättrar anslutningsmöjligheterna och stöder Power Over Ethernet. På AI-fronten säkerställer integrationen av Hailo-8™ M.2 AI-acceleratorer realtidsinförande. Ytterligare funktioner inkluderar RAID-stödd lagring, trådlös anslutning och TPM 2.0-säkerhet. UL-certifieringar validerar ytterligare dess industriella kvalitet och säkerhet.

Tactile RCO-3000-CML

System

  • Intel® Core™ i5-10500TE, 6 Core, 12MB Cache, up to 3.7 GHz, TDP 35W
  • System Chipset: Intel® Q470E Express Chipset
  • LAN Chipset:
    • GbE1: Intel I219 (Support Wake-on-LAN and PXE)
    • 2.5 GbE2: Intel I225 (Support Wake-on-LAN and PXE)
  • Audio Codec: Realtek ALC888S
  • System Memory: 2x 260-Pin DDR4 2666/2933MHz SODIMM. Max. up to 64GB
  • BIOS: AMI 256Mbit SPI BIOS
  • Watchdog: Software Programmable Supports 1~255 sec. System Reset
  • TPM: TPM 2.0

Display

  • DisplayPort: 3x DisplayPort, support resolution 4096 x 2304 (1x DP Port Co-layout HDMI Connector)
  • HDMI: Yes, Shared by 1x DP port
  • Multiple Display: Triple Display

Storage

  • M.2:
    • 1x M.2 (E Key, PCIe x1, USB 2.0, 2230, Support CNVi)
    • 1x M.2 B Key, 2242/3042/3052 (PCIex2, Support AI Module/NVMe Storage) (PCIex1&USB 3.2 Gen1, Support 4G/5G)
  • mSATA: 1x mSATA
  • SIM Socket: 2x External SIM socket (Mini PCIe attached)
  • SSD/HDD:
    • 1x Internal 2.5" SATA HDD Bay (support H=9mm)
    • 1x Removable 2.5" SATA HDD Bay (support H=7mm, hot-swappable) Support RAID 0, 1, 5

Expansion

  • Mini PCIe: 1x Full-size Mini PCIe

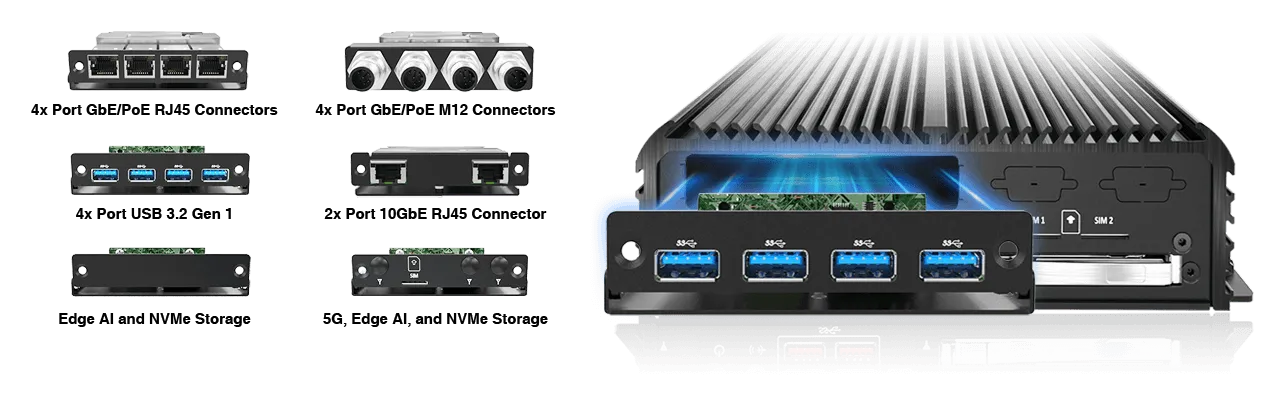

  • Expansion Modules:
    • 4-port GbE module with Intel® I350 Chipset, RJ-45 or M12 connector (PoE optional)
    • 2-Port 10GbE RJ45 with Intel X710 Chipset
    • 4-Port USB with Renesas uPD720201K8 host controller (share PCIe Gen2 x1 bandwidth)
    • 1x M.2 M-Key (PCIe x4 Lane, 2242/2260) for NVMe/AI Module
    • 2x M.2 B-Key 2242/3042/3052 for NVMe/AI Module and 4G/5G Module

Operating System

  • Windows: Windows 10
  • Linux: Linux kernel

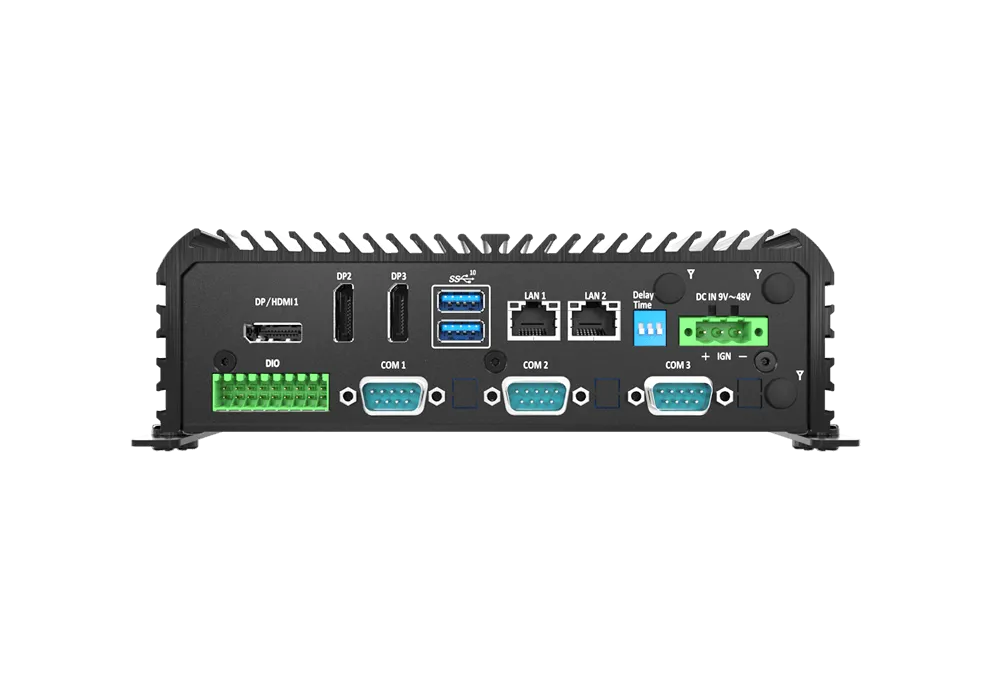

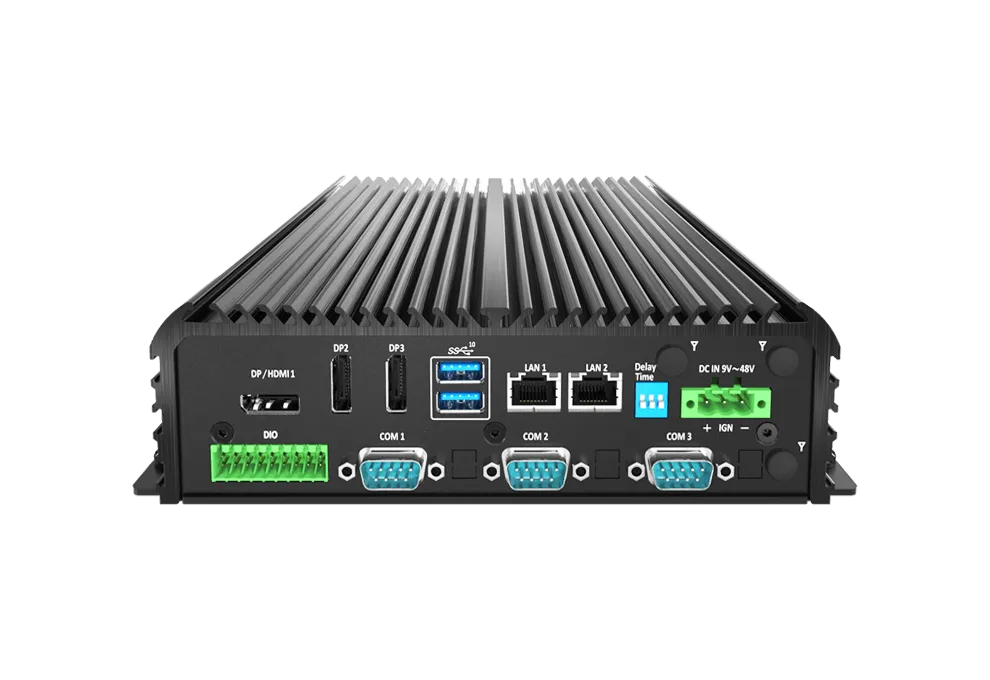

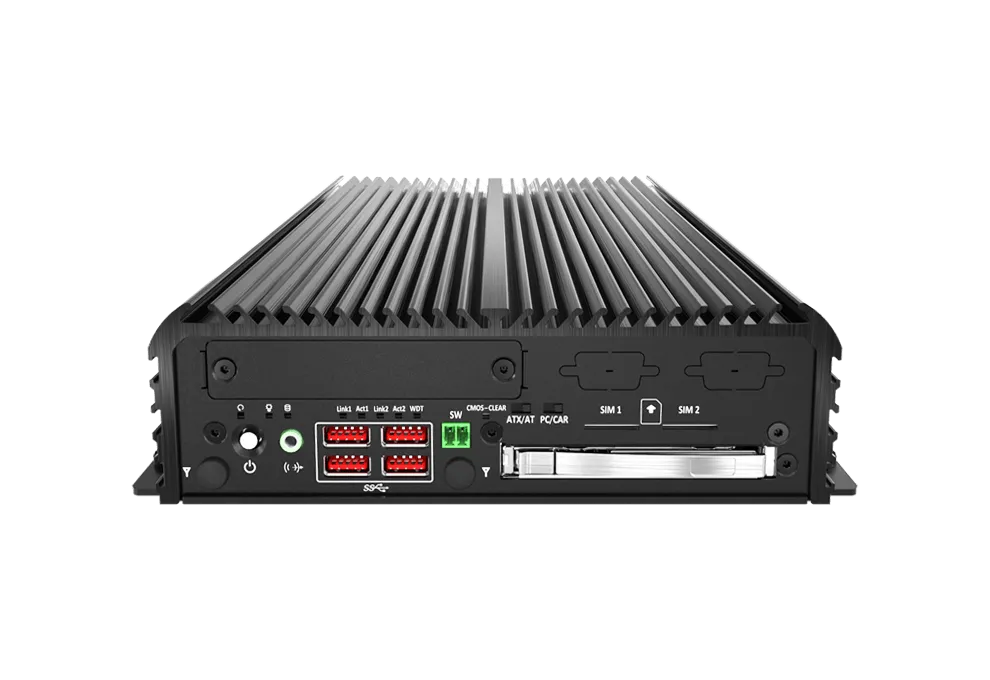

I/O

  • Audio: 1x Line-out
  • CAN: 2x CAN 2.0 A/B 2-pin Internal header
  • COM: 3x RS-232/422/485 ; 2x RS-232/422/485 (internal)
  • DIO: 8 in / 8 out (Isolated)
  • LAN: 2x RJ45
  • Universal I/O Bracket: 1x Universal I/O Bracket (By mini PCIe interface)
  • USB:
    • 6x USB 3.2 Gen 2 (10Gbps)
    • 1x USB 3.2 Gen 1 (5 Gbps, internal)
    • 1x USB 2.0 (internal)
  • Others:
    • 5x WiFi Antenna Holes
    • 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off, 1x PC/Car Mode Switch, 1x Delay Time Switch, 1x CMOS Battery, 1x 4-Pin FAN Connector

Power

  • Power Mode: AT, ATX
  • Power Supply Voltage: 9~48VDC
  • Power Ignition Sensing: Power Ignition Management
  • Power Connector: 3-pin Terminal Block
  • Power Adaptor:
    • Optional AC/DC 24V/5A, 120W
    • Optional AC/DC 24V/9.2A, 220W
  • Power Protection:
    • OVP (Over Voltage Protection)
    • OCP (Over Current Protection)
    • Reserve Protection

Environment

  • Operating Temp.: -25°C to 70°C (35W CPU)
  • Storage Temp.: -30°C to 85°C
  • Relative Humidity: 10% to 95% (non-condensing)
  • Vibration:
    • With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
    • With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
  • Shock: With SSD: 50G, half sine, 11ms
  • Standards/Certification:
    • UL, CE, FCC Class A, EMC Conformity with EN50155 & EN50121-3-2

Physical

  • Construction: Extruded Aluminum with Heavy Duty Metal

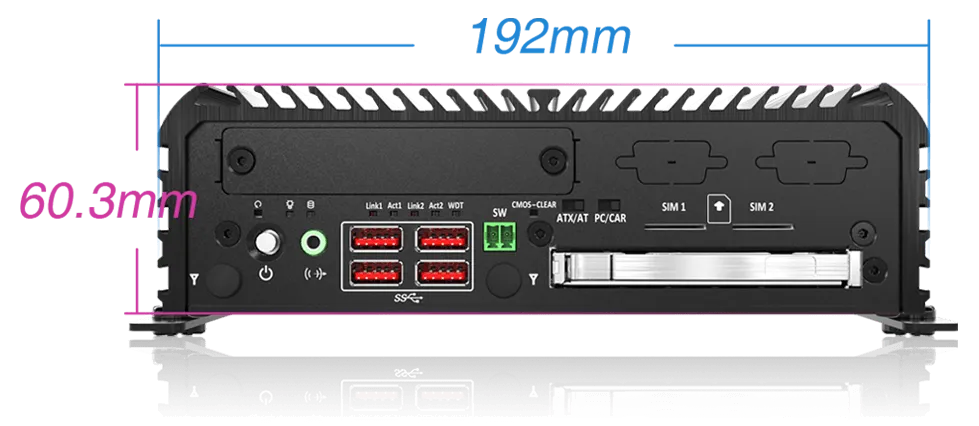

  • Dimension: 192 (W) x 227 (D) x 60.3 (H) mm
  • Weight: 3.3kg - 4.1 kg
  • Mounting: Wall Mounting
