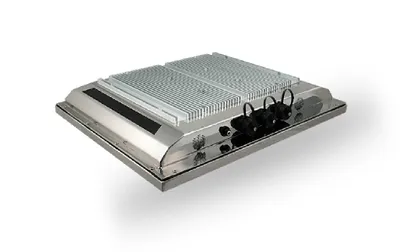

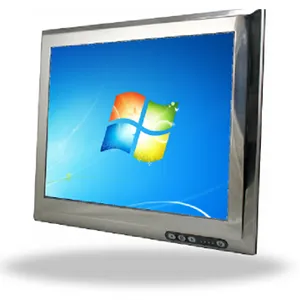

Industrial Stainless Panel PC
Tactile STPPC series of stainless steel panel pc's fully protected to meet the IP65 standard. STPPC is specially suitable for humid environments with high demand on reliability. For environment with high hygiene requirements the STPPC is easy to clean and sanitize. washed off.
Rugged and IP protected ports
The I/O ports of the STPPC are rugged out of the box. No need for additional brackets or covers to make the unit durable and protected. All I/O ports are ingress protected meeting the IP65 standard. Ports all have the possibility to be strain relieved once cables are connected to the unit.
The STPPC communicate with WIFI antennas integrated within the unit. A passthrough sealed window allow radio frequency to travel in and out of the unit.
Following the international VESA standard the STPPC can be mounted with any VESA complaint mounting accessory (100mm x 100mm or 75mm x 75mm). Fasten securely with strong stainless M6 size screws. This enables the use of RAM Mount or Zircona type solutions to be used together with the STPPC.
Wide Range of Accessories
Tactile developed and provides a wide range of accessories to the STPPC series. Custom mechanical parts for mounting of the units and peripherals.
Intel® Atom™ E3845 4-Core 1.91GHz processor
1 x 204-Pin DDR3L 1333MHz SO-DIMM up to 8 GB
22 inch XGA (1024x768)
Yes. Analog, resistive, 5 wire, anti scratch
1 x Compact Flash Disk Socket I/II 1 x 2.5” IDE/ SATA HDD slot mSATA support
Ethernet 2 x RJ-45
Bluetooth Class 2 (optional)
2 x USB 2.0 (Waterproof, IP67 Rating)
1 x Serial COM1 RS-232 (Waterproof, IP67 Rating)
2 x Mini PCIe
First slot support mSATA
Second slot connects to SIM card slot
